RainFlo 1000-IG Rainwater Collection System

RainFlo 1000-IG Rainwater Collection System

RainFlo 1000 gallon in-ground rainwater collection system. Includes everything needed for a complete rainharvesting system.

RainFlo 1000-IG rainwater collection system

Our Price$3,099.95
SKURF-1000-IG

The RainFlo 1000 IG is a professional-class complete in-ground 1000 gallon rainwater harvesting system. Every component has been carefully selected and perfectly matched for optimal performance.

System includes:

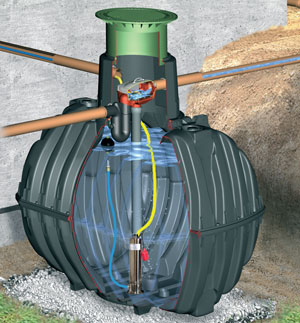

The Graf 1000 Gallon Carat Tank - Graf Carat-S 1000 Gallon Underground Cistern with Pedestrian Manway, 14" Telescopic Riser and Childproof PE Lid. Unlike most cisterns, the Carat can be left empty without the risk of collapsing.
The Graf Optimax Pro Internal Filter Package - Internal self-cleaning cascade filter package. Includes filter, downpipe attachments, calming inlet, overflow siphon and Spannfix sleeve. Suitable for roof areas up to 3,750 sq. ft.
RainFlo 1.25 HP Universal Pump
The RainFlo 1.25 Horsepower Submersible Pump- Heavy-duty, high performance 115V/60Hz 1.25 horsepower 3-stage submersible pump with 1.25" threaded inlet to easily accept a floating extractor. Produces up to 24 GPM and up to 78 PSI.
RainFlo PC115A Pump Controller
The RainFlo 115V Automatic Pump Controller - Provides automatic multifunction control for your water pump.
RainFlo 1.25 in Floating Filter The RainFlo 1.25" Floating Extractor - The floating extractor consists of an air-filled ball which suspends the floating inlet filter 4" below the water's surface where the cleanest and most oxygenated water resides.
RainFlo pump connection kit

The RainFlo Pump Connection Kit with MPT to hose barb adapter and marine-grade stainless steel hose clamp to connect the pump to the floating extractor.

1-1/4
The 1.25" Heavy Duty Bulkhead Fitting is installed in the side of the tank dome for a watertight connection between the inside and outside of the tank for the pump output plumbing.




Available Options:



Vehicle Loading Option - $689.95

Includes heavy duty telescopic dome shaft and cast iron lid for vehicle loading up to a maximum axle loading of 2.2 tons.
