Product Description:

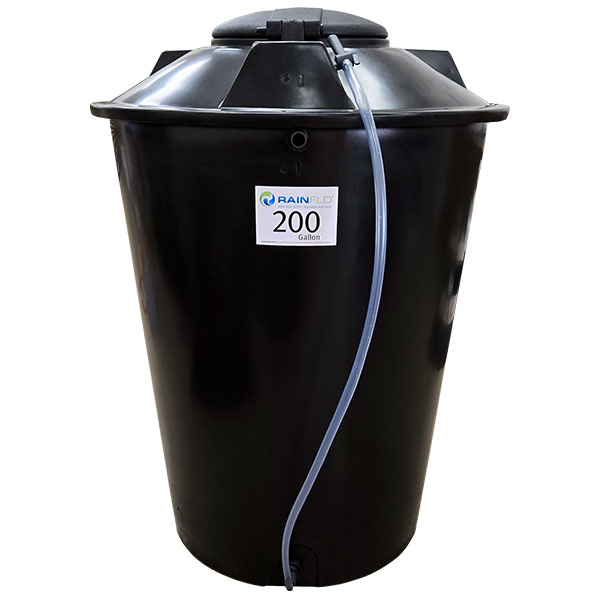

The RainFlo 200 Gallon Complete Above Ground Rainwater Collection System is preconfigured to simplify assembly and reduce your installation time.
We drill all the necessary holes and also install the inlet and nozzle/hose outlet fittings in the optimal locations on the storage tank. The TST-200AGS includes a vertical water tank, downspout connection, nozzle/hose, and hardware.
Tank Dimensions: 43" Diameter 43" Height
Installation Steps:
|
PLEASE NOTE: Tank arrives with components installed or stored inside. Water is released by gravity, lower hose to start water flow. If pressurized water flow is needed, consider adding a RainFlo pump. |
|
1. Attach nozzle and hose assembly to bottom connector. |
|

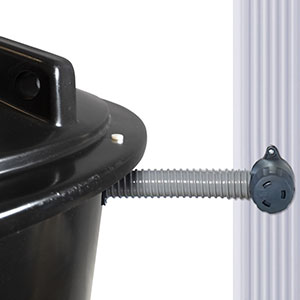

2. With included hole saw, drill a hole in downspout at a height appropriate for the top tank inlet connector. |
|

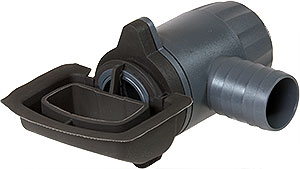

3. Fold flexible water collector end and insert into downspout. Using included screws, fasten housing to downspout. |
|
4. Attach one end of the grey filter hose to tank inlet. |
|
5. Attach other end of the grey filter hose to the filter housing. You are now ready to start collecting rain water! |
|
6. If nozzle on/off lever comes out of nozzle housing, insert lever back into nozzle by pressing firmly and turning clockwise. |
PLEASE NOTE: Once the tank is plumbed, the tank will hold less than the max gallon storage capacity, as the overflow outlet is located below the top of the tank.
