Manufactured using first-generation food-grade materials to ensure consistent and long-term structural integrity, the Graf EcoBloc system is the strongest and easiest to install modular rainwater retention and detention system in the world.
EcoBloc Rainwater and Stormwater Management Family
EcoBloc Inspect Modular Storage System
Industry-leading strength (up to 60-ton, certified AASHTO HS20 and HS25 loading) with only minimum 2'-7.5" of fill cover. Unique channel design allows inspection and cleaning of the chamber. Often installed on the bottom layer of a modular system with Maxx or Light modules.
EcoBloc Maxx K Up Modular Storage System
Truck-bearing strength (40-ton, HS20 loading) with only minimum 2'-7.5" of fill cover. Often installed in parking lots, under driveways and recreation areas along with a Vario shaft for filtration and pump access.
EcoBloc Light Modular Storage System
Standard minimum earth covering of just 10" and up to 12-ton vehicle-bearing strength with only minimum 31.5" of fill cover. Often installed in grass and turf areas and recreation areas along with a Vario shaft for filtration and pump access.
Vario Flex Filter Shaft System
Revolutionary design for access, filtration, cleaning and pump installation. Fits anywhere in the Ecobloc modular tank system to allow inlet filtration, inspection access/cleaning, and also makes a great pump well.

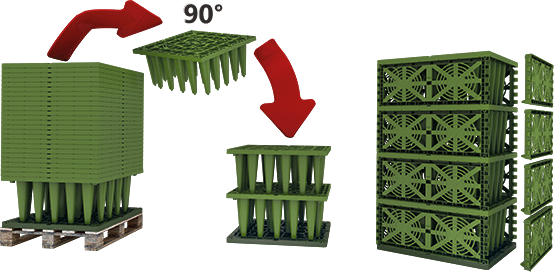

EcoBloc Assembly
Features:
Universal use: For rainwater/stormwater infiltration, retention or rainwater harvesting
Twice the storage volume per truck: To save space during transport, two EcoBloc Maxx K Up modules are stacked one inside the other. This halves transport costs and CO2 emissions.
Easy to install: GRAF EcoBloc Maxx K Up modules are easy to transport and install. The modular system structure requires few accessories.
Easy to inspect: The compatible 'EcoBloc Inspect' inspection channel allows the entire infiltration system to be effectively monitored. The ability of the EcoBloc Inspect system allow access by inspection cameras that are commonly found on the market. This has been confirmed by several independent testing authorities.
Can be cleaned by high pressure jetting: GRAF EcoBloc Inspect system can be easily cleaned by high pressure jetting.
Highly flexible design options: Each primary module (layer) of the EcoBloc Maxx K Up stack has a volume of 59.4 gallons in an area of 31.5" X 31.5" and a height of 13.8". An additional 6.6 gallons is provided by each baseplate module. The system size and load-bearing can be adjusted individually to suit requirements of traffic and of non-traffic area.
Does not require a geogrid layer to attain loading specifications.
Truck-bearing: The GRAF EcoBloc Maxx K Up has a truck-bearing capacity of 40 tons with a just 31.5" of earth covering.
Installation depth of up to 13 feet: Even under heavy loads, the GRAF EcoBloc Maxx K Up system can be installed at a depth of up to 16' 4.8". This means that up to 14 layers are possible.
Inlet and outlet connections up to 8". Large infiltration volumes require large pipe cross-sections. This isn't a problem for GRAF EcoBloc Maxx K Up: it has 4", 6", 8 and 10" connections on all sides. The 4" connections are positioned eccentrically on the sides to accommodate use as an inlet (slightly low) or as an overflow (high) or any other user-desired configuration.
Designed for decades of use: A durable product design ensures sustainability.
Built to offer double safety, the GRAF EcoBloc Maxx K Up is designed for a service life of over 50 years.
High infiltration rate: The GRAF EcoBloc Maxx K Up system is designed to have high rate of infiltration and barrier-free inspection.
Fully integrated with the new Graf Vario 800 Infiltration Shaft System
The Vario 800 flex shaft system can be directly installed in an infiltration or detention system with EcoBloc Inspect flex. The connection surfaces of the inspection channels in the Vario 800 flex shaft system are matched to the EcoBloc Inspect flex system
VIDEO
EcoBloc rainwater storage tank
EcoBloc stormwater detention system
Integrated filtration and inspection shafts can be placed anywhere in the system
EcoBloc can now be modeled in HydroCAD:
EcoBloc components can be easily modeled with the HydroCAD Stormwater Modeling System, allowing simplified calculation of the storage and infiltration behavior. The HydroCAD Chamber Wizard also performs automated modular system layout and simplifies the process of designing a modular rainwater catchment system, while meeting specific storage and footprint requirements. Click here for details.
Ecobloc Maxx K UP System components
Part number
Description
402230
Primary module - 59.4 gallons, 31.5" X 31.5" X 13.8"
402231
Baseplate - 6.6 gallons, 31.5" X 31.5" X 1.6"

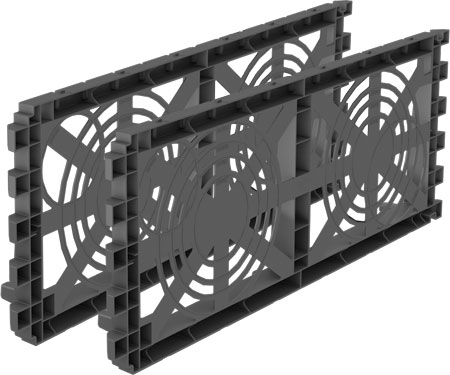

402233
End plates (set of 2)
402015
EcoBloc connectors (bag of 10)
402030
Adapter plate, 12"
402031
Adapter plate, 16"
402032
Adapter plate, 20"
369017
Vent pipe with shield, 4"
231002
Geotextile fabric; roll width 16 ft.
Installation Depth and Loading Variables
EcoBloc Maxx K Up
EcoBloc Maxx K Up with
EcoBloc Inspect
Green area
9.8" min. - 9' max.
{16.4 feet}
19.7" min. - 78.7" max.
{16.4 feet}
Vehicle
9.8" min. - 9' max.
{16.4 feet}
19.7" min. - 78.7" max.
{13.1 feet}
12-ton H-10,H-15
19.7" min. - 9' max.
{16.4 feet}
31.5" min. - 78.7" max.
{16.4 feet}
30-ton Vehicle
19.7" min. - 8' 2.4" max.
{16.4 feet}
31.5" min. - 68.9" max.
{16.4 feet}
40-ton HS-25
31.5" min. - 7' 4.5" max.
{16.4 feet}
31.5" min. - 48.9" max.
{16.4 feet}
min. - max. earth covering {max. installation depth}
Technical data for EcoBloc Maxx K Up Primary Module
Weight
19.8 lbs
Gross volume
59.4 US gallons
Net volume
57.9 US Gallons
Storage coefficient
97%
Technical data for EcoBloc Maxx K Up Baseplate
Weight
8.8 lbs.
Gross volume
6.6 US gallons
Net volume
5.2 US gallons
Storage coefficient
95%
Save on Freight Costs with EcoBloc:
VIDEO
Typical Site Layout (Stormwater Detention System):
Ease of Assembly:
Flexible Site Design:
