Graf Vario 800 Flex Shaft System

Graf Vario 800 Flex Shaft System
The Graf Vario 800 Flex Shaft System can be employed as an inlet shaft, detention shaft, inspection shaft or pump shaft for the Graf EcoBloc modular water storage system.
Our Price$1,349.80
List Price$1,644.95
SKU450001


Currently in stock


The Vario 800 Flex is as flexible as your EcoBloc modular water storage system.

  • Shaft can be fully integrated, therefore no additional excavation is required
  • Various applications (e.g. as an inlet shaft, detention shaft, inspection shaft or pump well/shaft)
  • Can be positioned in any location in the ditch grid
  • Can be combined with proven GRAF covers and shaft components
  • Connections via the inlet module can be rotated 360°
  • Generous accessibility with 23.6" clearance
  • 8", 12", 16" connections
  • Shaft volume can be calculated into the assessment of the modular storage volume
The Type-1 Standard Unit consists of the 450050 Type-1 module, 450052 Base/Cover set, 330360 Infiltration Inlet module and 371011 Maxi Lid (green). Strainer basket, vehicle loading upgrade and other accessories are available.

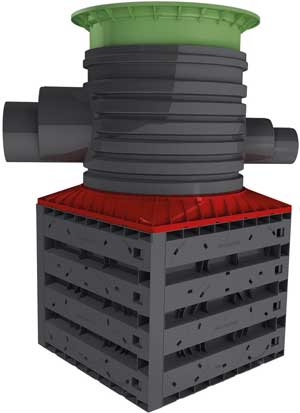

The Type-2 Standard Unit consists of the 450051 Type-2 module, 450052 Base/Cover set, 330360 Infiltration Inlet module and 371011 Maxi Lid (green). Strainer basket, vehicle loading upgrade and other accessories are available.

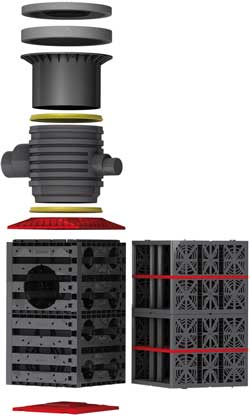

Graf Vario set-upGraf Vario installation

Looking for an easy way to compare tank configurations

Click for details

EcoBloc can now be modeled in HydroCAD:

EcoBloc components can be easily modeled with the HydroCAD Stormwater Modeling System, allowing simplified calculation of the storage and infiltration behavior. The HydroCAD Chamber Wizard also performs automated modular system layout and simplifies the process of designing a modular rainwater catchment system, while meeting specific storage and footprint requirements. Click here for details.


Looking for an easy way to compare tank configurations
System Components:

Part number Image Description
402001 Graf EcoBloc Water Storage System Graf EcoBloc Inspect Modular Water Storage System
402200 Graf EcoBloc Water Storage System Graf EcoBloc Maxx Modular Water Storage System
402300 Graf EcoBloc Water Storage System Graf EcoBloc Light Water Storage System
450050 Vario 800 Flex Module, Type-1 - 60.7 gallons, 31.5" x 31.5" x 14"
450051 Vario 800 Flex Module, Type-2 - 113.5 gallons, 31.5" x 31.5" x 26"
450052
Vario 800 Flex Base/Cover Set
330360 Infiltration Inlet Module, 24"
371003 Infiltration Extension, 24"
340523
Infiltration Filter Strainer, 24"
371010
Telescopic Riser, Pedestrian, Mini
371011
Telescopic Riser, Pedestrian, Maxi
371020
Telescopic Riser, Vehicle Loading with Iron Lid
