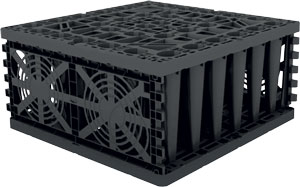

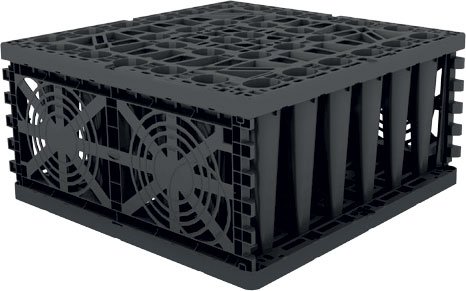

Graf EcoBloc Maxx Modular Water Storage System

Graf EcoBloc Maxx Modular Water Storage System

Currently in stock
Graf EcoBloc modular water storage systems feature unlimited storage capacity, flexible design options, ease of inspection and integrated filtration shafts. EcoBloc is today's leading solution for rainwater storage, stormwater detention and hybrid retention/detention installations. $64.90 price is for a single starter unit with Primary Module and Baseplate holding 66 US gallons. Please call 800-654-9283 for additional configuration and freight pricing.
Our Price$64.90
SKU40220A


Manufactured using first-generation food-grade recycled materials to ensure consistent and long-term structural integrity, the Graf EcoBloc system is the strongest and easiest to install modular rainwater retention and detention system in the world.

EcoBloc Rainwater and Stormwater Management Family
EcoBloc Inspect Modular Storage System

Industry-leading strength (up to 60-ton, certified AASHTO HS20 and HS25 loading) with only minimum 2'-7.5" of fill cover. Unique channel design allows inspection and cleaning of the chamber. Often installed on the bottom layer of a modular system with Maxx or Light modules.
Graf Ecobloc Inspect System
EcoBloc Maxx Modular Storage System

Truck-bearing strength (40-ton, HS20 loading) with only minimum 2'-7.5" of fill cover. Often installed in parking lots, under driveways and recreation areas along with a Vario shaft for filtration and pump access.
Graf Ecobloc Maxx System
EcoBloc Light Modular Storage System

Standard minimum earth covering of just 10" and up to 12-ton vehicle-bearing strength with only minimum 31.5" of fill cover. Often installed in grass and turf areas and recreation areas along with a Vario shaft for filtration and pump access.
Graf Ecobloc Light System
Vario Flex Filter Shaft System

Revolutionary design for access, filtration, cleaning and pump installation. Fits anywhere in the Ecobloc modular tank system to allow inlet filtration, inspection access/cleaning, and also makes a great pump well.
Graf Vario Filter Shaft System




EcoBloc Assembly
Graf EcoBloc Light Assembly illustration




Features:



  • Universal use: For rainwater/stormwater infiltration, retention or rainwater harvesting
  • Twice the storage volume per truck: To save space during transport, two EcoBloc Maxx modules are stacked one inside the other. This halves transport costs and CO2 emissions.
  • Easy to install: GRAF EcoBloc Maxx modules are easy to transport and install. The modular system structure requires few accessories.
  • Easy to inspect: The compatible 'EcoBloc Inspect' inspection channel allows the entire infiltration system to be effectively monitored. The ability of the EcoBloc Inspect system allow access by inspection cameras that are commonly found on the market. This has been confirmed by several independent testing authorities.
  • Can be cleaned by high pressure jetting: GRAF EcoBloc Inspect system can be easily cleaned by high pressure jetting.
  • Highly flexible design options: Each primary module (layer) of the EcoBloc Maxx stack has a volume of 59.4 gallons in an area of 31.5" X 31.5" and a height of 13.8". An additional 6.6 gallons is provided by each baseplate module. The system size and load-bearing can be adjusted individually to suit requirements of traffic and of non-traffic area.
  • Does not require a geogrid layer to attain loading specifications.
  • Truck-bearing: The GRAF EcoBloc Maxx has a truck-bearing capacity of 40 tons with a just 31.5" of earth covering.
  • Installation depth of up to 13 feet: Even under heavy loads, the GRAF EcoBloc Maxx system can be installed at a depth of up to 16' 4.8". This means that up to 14 layers are possible.
  • Inlet and outlet connections up to 8". Large infiltration volumes require large pipe cross-sections. This isn't a problem for GRAF EcoBloc Maxx: it has 4", 6", 8 and 10" connections on all sides. The 4" connections are positioned eccentrically on the sides to accommodate use as an inlet (slightly low) or as an overflow (high) or any other user-desired configuration.
  • Designed for decades of use: A durable product design ensures sustainability.
  • Built to offer double safety, the GRAF EcoBloc Maxx is designed for a service life of over 50 years.
  • High infiltration rate: The GRAF EcoBloc Maxx system is designed to have high rate of infiltration and barrier-free inspection.
  • Fully integrated with the new Graf Vario 800 Infiltration Shaft System
  • The Vario 800 flex shaft system can be directly installed in an infiltration or detention system with EcoBloc Inspect flex. The connection surfaces of the inspection channels in the Vario 800 flex shaft system are matched to the EcoBloc Inspect flex system




EcoBloc rainwater storage tank EcoBloc stormwater detention system
Graf EcoBloc Raintwater storage tank
Graf EcoBloc stormwater detention system

Integrated filtration and inspection shafts can be placed anywhere in the system



Looking for an easy way to compare tank configurations

Click for details
EcoBloc can now be modeled in HydroCAD:

EcoBloc components can be easily modeled with the HydroCAD Stormwater Modeling System, allowing simplified calculation of the storage and infiltration behavior. The HydroCAD Chamber Wizard also performs automated modular system layout and simplifies the process of designing a modular rainwater catchment system, while meeting specific storage and footprint requirements. Click here for details.


Looking for an easy way to compare tank configurations

Ecobloc Maxx System components

Part number Image Description
402200 Graf EcoBloc Maxx Primary module Primary module - 59.4 gallons, 31.5" X 31.5" X 13.8"
402201 Graf EcoBloc Maxx baseplate Baseplate - 6.6 gallons, 31.5" X 31.5" X 1.6"
402203 Graf EcoBloc Maxx End Plates End plates (set of 2)
402015
EcoBloc connectors (bag of 10)
402030 Adapter plate, 12"
402031 Adapter plate, 16"
402032
Adapter plate, 20"
369017
Vent pipe with shield, 4"
231002
Geotextile fabric; roll width 16 ft.

Installation Depth and Loading Variables


EcoBloc Maxx EcoBloc Maxx with
EcoBloc Inspect
Green area 9.8" min. - 9' max.
{16.4 feet}
19.7" min. - 78.7" max.
{16.4 feet}
Vehicle 9.8" min. - 9' max.
{16.4 feet}
19.7" min. - 78.7" max.
{13.1 feet}
12-ton H-10,H-15 19.7" min. - 9' max.
{16.4 feet}
31.5" min. - 78.7" max.
{16.4 feet}
30-ton Vehicle 19.7" min. - 8' 2.4" max.
{16.4 feet}
31.5" min. - 68.9" max.
{16.4 feet}
40-ton HS-25 31.5" min. - 7' 4.5" max.
{16.4 feet}
31.5" min. - 48.9" max.
{16.4 feet}
min. - max. earth covering {max. installation depth}

Technical data for EcoBloc Maxx Primary Module

Weight 19.8 lbs
Gross volume 59.4 US gallons
Net volume 57.9 US Gallons
Storage coefficient 97%

Technical data for EcoBloc Maxx Baseplate

Weight 8.8 lbs.
Gross volume 6.6 US gallons
Net volume 5.2 US gallons
Storage coefficient 95%

Save on Freight Costs with EcoBloc:




Typical Site Layout (Stormwater Detention System):
Graf Ecobloc Typical Site Layout

Ease of Assembly:
Graf Ecobloc Site Assembly

Flexible Site Design:
Graf Ecobloc installation in elbow configuration
