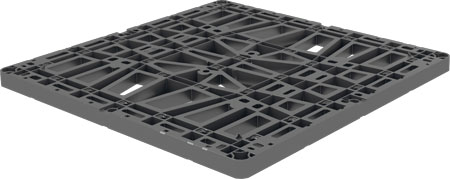

Graf EcoBloc Maxx K Up Baseplate Module - 6.6 Gallons

• Universal use: For rainwater/stormwater infiltration, retention or rainwater harvesting
• Twice the storage volume per truck: To save space during transport, two EcoBloc Maxx K Up modules are stacked one inside the other. This halves transport costs and CO2 emissions.
• Easy to install: GRAF EcoBloc Maxx K Up modules are easy to transport and install. The modular system structure requires few accessories.
• Easy to inspect: The compatible 'EcoBloc Inspect' inspection channel allows the entire infiltration system to be effectively monitored. The ability of the EcoBloc Inspect system allow access by inspection cameras that are commonly found on the market. This has been confirmed by several independent testing authorities.
• Can be cleaned by high pressure jetting: GRAF EcoBloc Inspect system can be easily cleaned by high pressure jetting.
• Highly flexible design options: Each primary module (layer) of the EcoBloc Maxx stack has a volume of 59.4 gallons in an area of 31.5" X 31.5" and a height of 13.8". An additional 6.6 gallons is provided by each baseplate module. The system size and load-bearing can be adjusted individually to suit requirements of traffic and of non-traffic area.
• Does not require a geogrid layer to attain loading specifications.
• Truck-bearing: The GRAF EcoBloc Maxx K Up has a truck-bearing capacity of 40 tons with a just 31.5" of earth covering.
• Installation depth of up to 13 feet: Even under heavy loads, the GRAF EcoBloc Maxx system can be installed at a depth of up to 16' 4.8". This means that up to 14 layers are possible.
• Inlet and outlet connections up to 8". Large infiltration volumes require large pipe cross-sections. This isn't a problem for GRAF EcoBloc Maxx K Up: it has 4", 6", 8 and 10" connections on all sides. The 4" connections are positioned eccentrically on the sides to accommodate use as an inlet (slightly low) or as an overflow (high) or any other user-desired configuration.
• Designed for decades of use: A durable product design ensures sustainability.
• Built to offer double safety, the GRAF EcoBloc Maxx K Up is designed for a service life of over 50 years.
• High infiltration rate: The GRAF EcoBloc Maxx K Up system is designed to have high rate of infiltration and barrier-free inspection.
• Fully integrated with the new Graf Vario 800 Infiltration Shaft System
• The Vario 800 flex shaft system can be directly installed in an infiltration or detention system with EcoBloc Inspect flex. The connection surfaces of the inspection channels in the Vario 800 flex shaft system are matched to the EcoBloc Inspect flex system

EcoBloc rainwater storage tank	EcoBloc stormwater detention system

Integrated filtration and inspection shafts can be placed anywhere in the system

EcoBloc can now be modeled in HydroCAD:

EcoBloc components can be easily modeled with the HydroCAD Stormwater Modeling System, allowing simplified calculation of the storage and infiltration behavior. The HydroCAD Chamber Wizard also performs automated modular system layout and simplifies the process of designing a modular rainwater catchment system, while meeting specific storage and footprint requirements. Click here for details.
