Graf Carat S 1700 Gallon Extension Tank

Graf Carat S 1700 Gallon Extension Tank
Graf Carat S 1700 Gallon Extension Tank
Graf Carat S 1700 Gallon Extension Tank

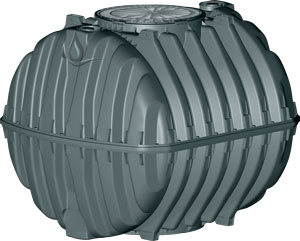

Graf Carat S 1700 Gallon Underground Extension Tank. This tank is intended to be used as a cost-effective extension tank to increase the storage capacity in conjunction with other Carat tanks which provide the access for pumps and filtration.

Our Price$2,119.95
List Price$2,438.00
SKU372014

Currently in stock

Upgrade to a Complete System and SAVE!
In Ground System or IGS Collection System
Includes:

  • 1.25 HP Pump
  • Automatic Controller
  • Graf Optimax Filter
  • Floating Extractor
  • Overflow Siphon
  • Calming Inlet
  • 1.25" Bulkhead Fitting
  • In-Ground First Flush Kit
  • Miscellaneous Fittings
Add to Cart
*Save $100 on this already discounted package deal with purchase of 500 gallon or larger in-ground tank. Use discount code IGSTankPumpDis at checkout.

Save over 20% off of retail pricing!

The Tank Guaranteed Not to Collapse When Empty*

  • 1700 Fully-usable gallons of additional storage

* When installed in compliance with manufacturer's installation instructions

Note: This is the Extension Tank which is intended to be used with the 1700 Gallon Carat S Underground Tank which can be found by clicking here.



Easy and Safe Assembly:

  • The patented quick connection (illustrated in green), allows the Carat tank to be assembled without screws in only few minutes. Disassembly is possible at any time.
  • The first-class EPDM material used in the profile seals (illustrated in yellow), has been laboratory tested to last more than 25 years.
  • The centering bolt (illustrated in orange) assures the accurate and easy assembly of the two half shells preventing any leaks

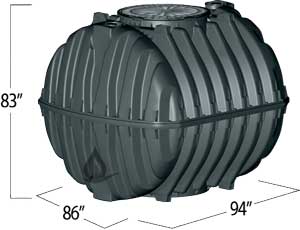

Graf Carat Extension Tank Dimensions



More Advantages:
  • Variable burial depth: 30" to 70.9"
  • 70.9" maximum burial depth even in groundwater
  • Unique in the world! – a global innovation: unique manufacturing process produces the highest stability due to latest techniques
  • Unique fit accuracy of the components thanks to new production process
  • Consistent quality due to German TÜV safety testing and production monitoring
  • Groundwater stable up to the middle of the tank due to extremely rigid construction
  • Secure investment with market leading 15-year warranty
  • Made from high quality Duralene; easy to recycle
  • Can be expanded as required

Application:
  • The global innovation – the new tank generation of the Carat rainwater underground tanks have been specially developed for rainwater harvesting
  • Frost-proof installation underground
  • Groundwater stable up to the middle of the tank due to extremely rigid construction

Logistical Advantages of the Carat Tank:

The Carat tank consists of two half shells which can be stacked on top of each other, allowing multiple tanks to be stacked on a single pallet for shipping. For example, it is possible to stack five 1,700 gallon Carat tanks on a single pallet. This allows a standard 40 ft. shipping container to house a total tank volume of up to 34,000 gallons! The tanks' unique stacking feature directly reduces transport costs and environmental impact from vehicle emissions.


How to Assemble a Carat Tank Video:




Tank Documents:

Graf Carat Tank Specifications

Download Graf Carat Tank Spec Sheet

Download Graf Carat Tank Installation and Maintenance Manual

Graf Carat Tank Assembly Video

View Video of Carat Tank Assembly
