600 Gallon Preconfigured Above Ground Rainwater Collection Package - Contractor Pack

Product Description:

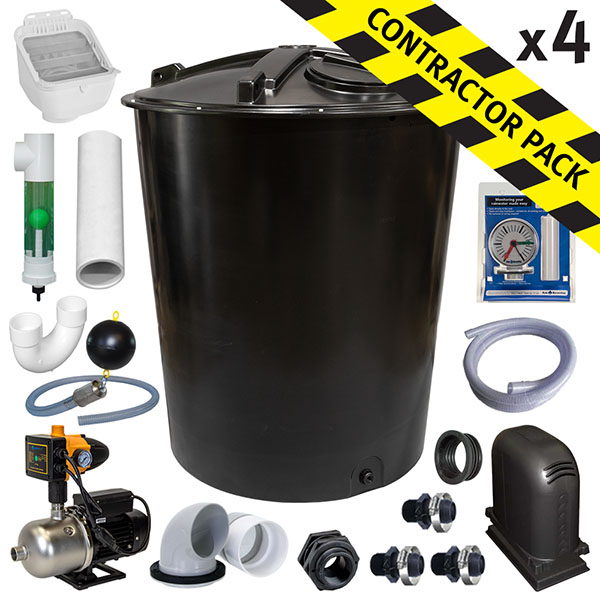

Save with a Contractor Pack of FOUR complete packages!

• Designed for contractors
• Four complete rainwater harvesting packages
• Pre-drilled and ready to assemble
• Ships on two pallets for reduced shipping

The RainFlo 600 Gallon Complete Above Ground Rainwater Collection Package is preconfigured to simplify assembly and reduce your installation time.

We drill all the necessary holes and provide the fittings, rain gauge, floating filter, and overflow for you to install on the storage tank. The TST-600AGP includes a vertical water tank, 1/2 hp external pump, pump cover, floating filter, tank overflow kit, pre-filtration, first flush diverter, calming inlet, tank gauge, and fittings. Piping from the downspout to the tank is not included.

The 600 gallon open top tank allows for easy installation, access, and maintenance. For reduced shipping costs, this package ships with the components inside the tank on a single pallet.

Tank Dimensions: 61" Top Dia. x 49" Bottom Dia. x 74" Height

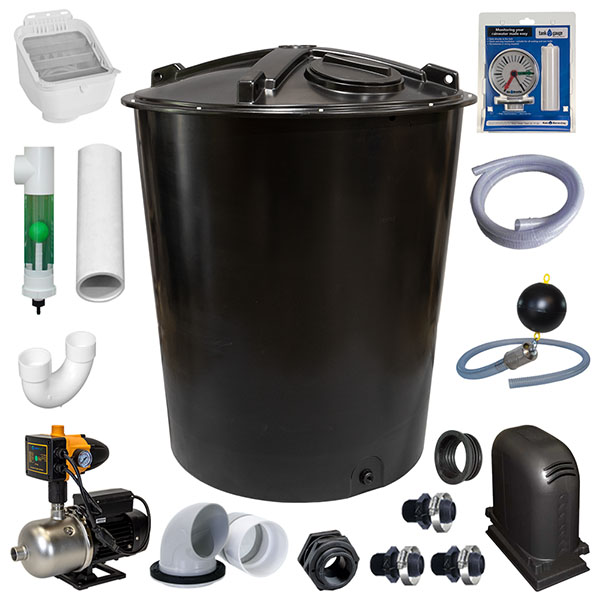

System includes components shown below:

Installation Steps:

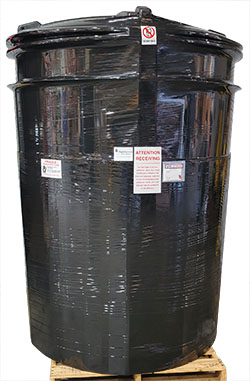

Tanks arrive wrapped and palletized with system components shipped inside.



System Features:

	600 Gallon RainFlo Open Top Water Tank - The RainFlo above ground open top water tanks are ideal storage solutions that are simple to use and maintain. These unique, technologically advanced water storage tanks are roto-molded from virgin high density polyethylene resin. Tank Dimensions: 61" Top Dia. x 49" Bottom Dia. x 74" Height
	RainFlo 1/2 Horsepower External Pump - Quiet (65 dB) automatic multi-stage (4 impellers) pump, with automatic pump control to supply water for household booster, rainwater and irrigation applications. Delivers up to 17.6 GPM and 34 PSI (max).
	Polyslab Pump Cover - The plastic pump cover is a lightweight, durable, and impact resistant solution to protect pumps in harsh environments. The cover and base are simple to install and raise the pump off the ground.
	1 Inch Stainless Steel Floating Filter- The floating extractor consists of an air-filled ball which suspends the floating inlet filter 4" below the water's surface where the cleanest and most oxygenated water resides. An important component for any irrigation application.
	3 Inch Rain Harvesting Tank Overflow Outlet Kit- Rain Harvesting 3" Overflow Outlet Kit with Mozzie Stoppa screen blocks mosquitoes and adds almost 5" of water to the tank before overflowing.
	3 Inch Rain Harvesting Leaf Eater Advanced- The single screen incorporates Clean Shield™ technology which deflects leaves and debris away from the flow of water. This minimizes maintenance and enhances catchment efficiency.
	3 Inch Rain Harvesting First Flush Diverter- Instead of contaminants flowing to the water tank, pollutants are diverted with the initial flow of water into the chamber of the water diverter.
	Rain Harvesting Tank Gauge- A water level indicator that is simple and easy to install. Suitable for all vented tanks up to 100" in height. Features an easy-to-read display dial and utilizes a weight float, suspended on a string line to provide instant, accurate readings.
	3 Inch Calming Inlet The calming inlet keeps water clear and fresh by gently introducing water and oxygen at the bottom of the tank without disturbing the sediment
	Pump Connection Hardware Kit - Fittings, suction hose and adapters you need to connect the pump to the tank. Just connect the pump to your irrigation system or a garden hose and you're ready to go!

Product Documents:

Product Data Sheet
