RainFlo 1700-IG Rainwater Collection System

RainFlo 1700-IG Rainwater Collection System

RainFlo 1700 gallon in-ground rainwater collection system. Includes everything needed for a complete rainharvesting system.

RainFlo 1700-IG rainwater collection system

Our Price$5,199.95
List Price$6,240.00
SKURF-1700IG-125-230-340037



Contact us for current lead time.

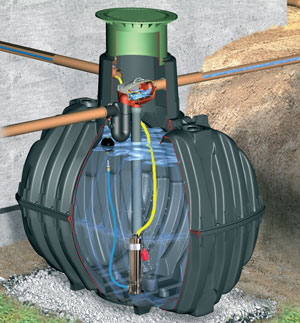

The RainFlo 1700-IG is a professional-class complete in-ground 1,700 gallon rainwater harvesting system. Every component has been carefully selected and perfectly matched for optimal performance.



System Includes:

The Graf 1700 Gallon Carat Tank - Graf Carat-S 1700 Gallon Underground Cistern with Pedestrian Manway, 14" Height Telescopic Riser and Childproof PE Lid. Unlike most cisterns, the Carat can be left empty without the risk of collapsing.
The Graf Optimax Pro Internal Filter Package - Internal self-cleaning cascade filter package. Includes filter, downpipe attachments, calming inlet, overflow siphon and Spannfix sleeve. Suitable for roof areas up to 3,750 sq. ft.
RainFlo 1.25 HP Universal Pump
The RainFlo 1.25 Horsepower Submersible Pump- Heavy-duty, high performance 230V/60Hz 1.25 horsepower 3-stage submersible pump with 1.25" threaded inlet to easily accept a floating extractor. Produces up to 24 GPM and up to 78 PSI.
RainFlo 230V Pump Controller
The RainFlo 230V Automatic Pump Controller - Provides automatic multi-function control for your water pump.
RainFlo 1.25 in Floating Filter The RainFlo 1.25" Floating Extractor - The floating extractor consists of an air-filled ball which suspends the floating inlet filter 4" below the water's surface where the cleanest and most oxygenated water resides.
RainFlo pump connection kit

The RainFlo Pump Connection Kit with MPT to hose barb adapter and marine-grade stainless steel hose clamp to connect the pump to the floating extractor.

1-1/4
The 1.25" Heavy Duty Bulkhead Fitting is installed in the side of the tank dome for a watertight connection between the inside and outside of the tank for the pump output plumbing.



How to Assemble a Carat Tank Video:



Available Options:

Vehicle Loading Option

Includes heavy duty telescopic dome shaft and cast iron lid for vehicle loading up to a maximum axle loading of 2.2 tons.



Optional Accessories:

The Rainwater System Controller- Provides a constant, digital readout of the water level that is in your tank. Additionally, it has the ability to control a back-up valve. Always switching points (when to turn the back-up on/off) are easily programmed on site.

Rainwater System Controller
1.25" Motorized 3-way Valve- Provides a direct back-up solution. Back-up water would be plumbed into one end and your rainwater system would be plumbed into the other with one discharge line to your irrigation system or home. 1.25 inch motorized 3-way valve

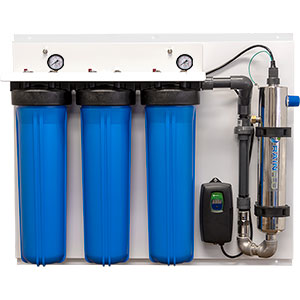

RainFlo Complete 25 GPM UV Disinfection Package- Purifies and disinfects your rainwater to potable standards. Allows your water to be reused within the building plumbing system to flush toilets. Includes:
  • Completely assembled, ready to install 25 GPM UV disinfection panel
  • (1) 20 Micron Sediment Filter
  • (1) 5 Micron Sediment Filter
  • (1) 1 Micron Activated Carbon block Filter


Drawings:

RainFlo 1700-IG Rainwater Collection System

RainFlo-1700-IG.pdf
