Product Description:

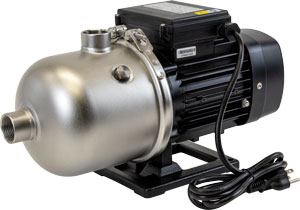

The RainFlo MHP75 is a 115V/60Hz 4-stage 3/4 HP centrifugal surface pump with all stainless steel 304 construction in the water end. Its solid construction and thick casings result in extraordinarily quiet and reliable operation.
The MHP75 is typically paired with an auxiliary pump control for on/off functions and run-dry protection such as the
RainFlo 115V Pump Controller.
Pump Performance Curve:
Pump Performance Chart:
| RainFlo MHP75 Performance Chart |
| TDH |
PSI |
GPM |
| 150 |
65 |
6.5 |
| 139 |
60 |
9.2 |
| 127 |
55 |
11.7 |
| 116 |
50 |
14.0 |
| 104 |
45 |
15.8 |
| 92 |
40 |
17.0 |
| 81 |
35 |
18.8 |
| 69 |
30 |
20.2 |
| 58 |
25 |
21.4 |
| 46 |
20 |
22.7 |
| 35 |
15 |
24.0 |
| 23 |
10 |
25.0 |
| 13 |
5.5 |
26.2 |
Specifications:
Performance range:
|
Flow up to 26 gpm
Head up to 164 ft
|
Inlet/Outlet size:
|
1" FPT
|
System pressure:
|
Up to 65 psi
|
Inlet pressure:
|
Max. 145 psi
|
Operating pressure:
|
Max. 145 psi |
Liquid temperature:
|
32°F - 158°F
|
Ambient temperature:
|
32°F - 122°F |
Nominal voltage range:
|
110V - 120V, 60Hz, 9A max.
|
Power cord:
|
5 foot 3-prong grounded
|
| P1kW: |
0.96 |
| P2kW: |
0.75 |
Weight:
|
22 Lbs.
|
Dimensions:
|
15.75"L x 6.5"W x 9"H
|
Thermal protection:
|
Yes |
| Motor: |
2-pole induction, Continuous duty
|
| RPM: |
3450 |
| Cooling: |
Air cooled
|
Insulation class:
|
F |
| Protection: |
IP55 |
| Certifications: |
TÜV, CCC |
Rear side and priming/drain ports illustration:
(upper is the priming port, lower is the drain): |
|
