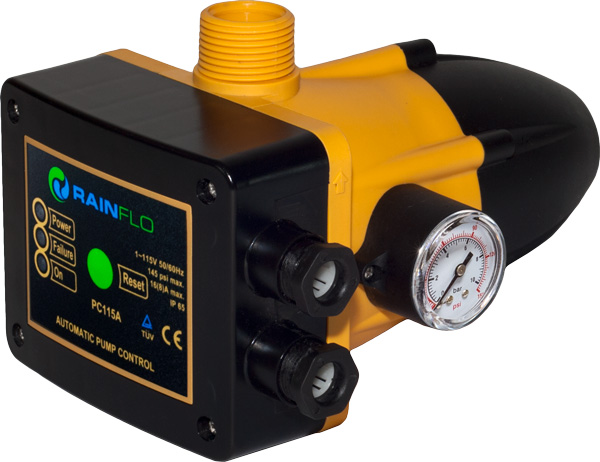

RainFlo PC115 115V Automatic Pump Controller

RainFlo PC115 115V Automatic Pump Controller

Electronic pump controller with integral flow regulation provides industry-leading demand-based pump control with built in dry-run protection and pressure gauge.
Our Price$179.95
List Price$215.00
SKU400633

Currently in stock



Product Description:

The RainFlo PC115A provides automatic control for your water pump with adjustable starting pressure and pump stop control based on user demand (flow). Can be used with or without a pressure tank. Features demand-side pressure gauge, run-dry protection and check valve (non-return valve) function. It provides direct control of water pumps up to 1.5 horsepower at 115V.

The pump start pressure (low pressure threshold and start trigger), is adjustable through a screw on the back side of the unit. As with most pump controllers, the system high pressure is based on the pump output.

The PC115A electronic controller commands the starting and stopping of single-phase electric water pumps whenever a tap or valve connected to the installation is opened or closed, respectively. When the pump is started, it keeps running as long as any connected tap remains open, supplying the network with the required flow at the related pressure.


Construction Characteristics:

  • Inlet connection: 1” male
  • Outlet connection: 1” male
  • Water hammer absorbing check valve
  • Dry-running protection system
  • Pressure gauge (indication in PSI and bar units)
  • Manual start button (RESET)
  • AUTO RESET function for automatic start after a failure
  • Power supply LED (POWER)
  • Pump switch-on LED (ON)
  • Safety system activation LED (FAILURE)
  • Alternating Green/Red at 1 Hz indicates all systems are normal while pump is on


Specifications:

  • Power supply voltage: 1 115-125V
  • Maximum current : 16 A
  • Max pump power : 1100W (1.5 HP) at 1 115-125V
  • Frequency : 50/60 Hz
  • Protection class : IP65
  • Enclosure class : NEMA 12
  • Ambient temperature : 0 /+140° F
  • Liquid temperature : 0 /+140° F
  • Max flow rate : 44 GPM
  • Adjustable starting pressure : 22 - 36 PSI
  • Max operating pressure : 145 PSI


Product Documents:

RainFlo PC115 Installation Manual

Download RainFlo PC115A Pump Controller Installation Instructions


Download Pump/Controller Installation Instructions

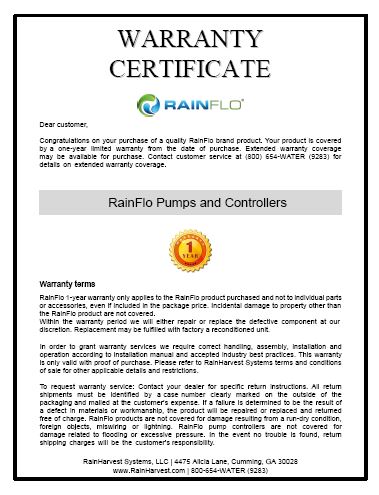

RainFlo Extended Warranty Certificate
Download RainFlo Extended Warranty Certificate
