High Performance Industrial Water Treatment System:

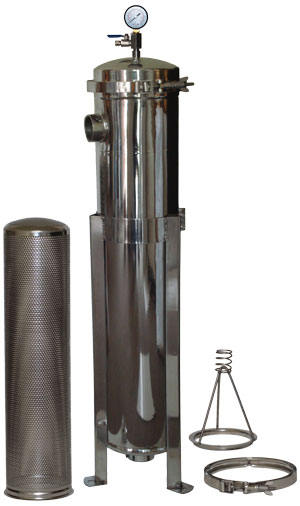

RainFlo Industrial Water Filter Housings are specially designed for large scale rainwater collection systems using the highest quality components and packaged in a complete and easy to install housing. Utilizing easily replaceable, large surface area, high-flow, polypropylene filter bags, the Industrial Water Filter Housing can filter to 5, 10, 25 or 50 microns at flow rates up to 135 gallons per minute.
- High Performance Filtration Up To 135 Gallons Per Minute
- Stainless Steel 304 Construction
- EPDM O-rings at Inner Sleeve and Upper Seal
- Hinged V-clamp Closure Design
- Pressure Gauge and Purge Valve Included
- Adjustable Tripod Stand with Bolt Mounts
| Specifications: |
| Initial Flow Rate: |
155 GPM |
|
Flow at 0.015 MPa Pressure Drop: |
120 GPM |
| Working Pressure: |
100 PSI |
| Nominal Filtration: |
5, 10 or 25 micron |
| Inlet/Outlet Size: |
3" Flanged Inlet (Top), 3" Flanged Outlet (Bottom) |
| Housing Dimensions: |
8" Diameter x 45" H (Min) 67" H (Max) |
| Inner Filtration Support Basket: |
304 SS, 7" Diameter x 28" Long |

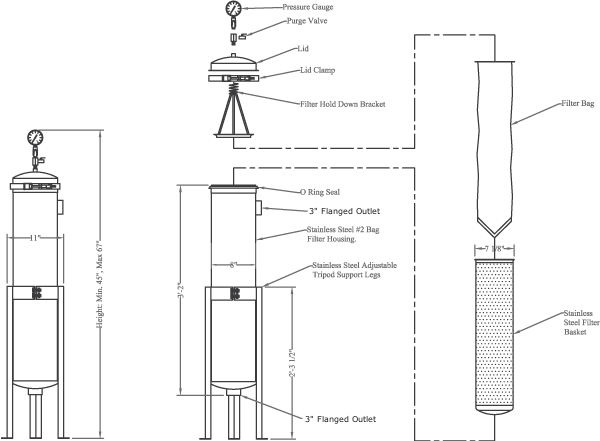

Dimensions and Components:
Product Documents:
