RainFlo Flow Inducer Rainwater Pump Stations

RainFlo Flow Inducer Rainwater Pump Stations
High performance mid-range automatic pump stations for large residential, commercial, and light-industrial rainwater collection systems.
Our Price$3,699.95
SKU6075FI00A

Options


Currently in stock


The Flow Inducer Product Line:



RainFlo Flow Inducer Kits are specially designed for rainwater collection systems using the highest quality components and packaged in a complete and easy to install bundle at an unbeatable price point. Using time-tested Goulds pump technology, these pump stations perfectly fill the performance gap between traditional standalone pumps and more expensive high-end pump stations.



All RainFlo Flow Induction Kits include:



  • High Performance Three Phase Motor, 230V
  • Single phase 230V supply to automatic pump controller
  • Variable Speed, Balanced Flow Pump Controller with Transducer (15' cable)
  • Water End with Sand and Abrasion Resistant Floating Stack Design
  • Flow Induction Pump Chamber with 15 degree Inclination
  • 2" Stainless Steel Floating Filter with 10' hose
  • 9.5 Gallon Inline Pressure Tank (13.9 Gal on FI-6000 model)
  • 150 PSI reinforced discharge hose with stainless steel camlock fittings

Flow Induction Pump Station Models
Model No.

Motor HP

Avg GPM

GPM @ 60 PSI

Performance Curve Online Price

FI-1800

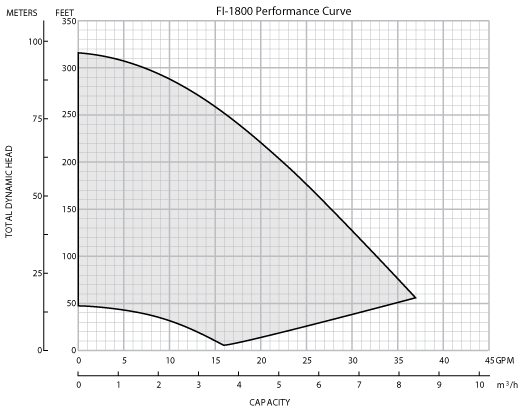

1.5 HP 18 29 Performance Curve $3,699.95

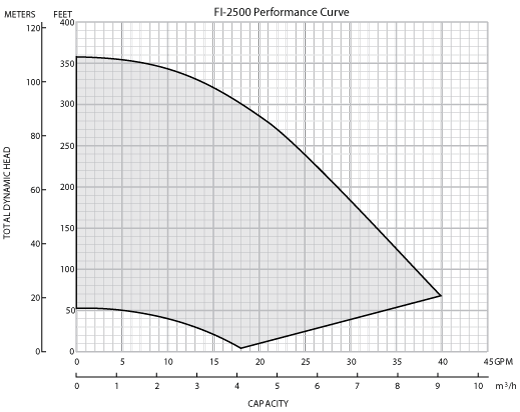

FI-2500 2 HP 25 34 Performance Curve $3,899.95

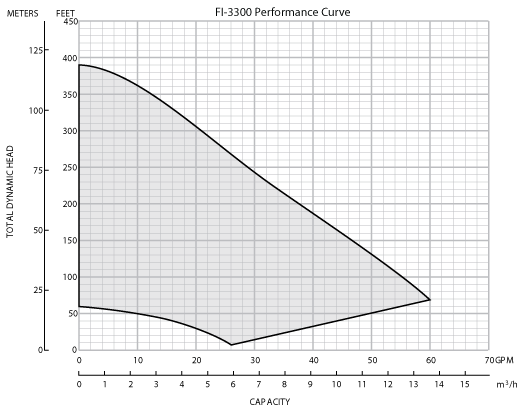

FI-3300 3 HP 33 48 Performance Curve $4,999.95
FI-6000 5 HP 60 59 Performance Curve $6,299.95


Flow Characteristics:



Maximum pump flow (GPM) at selected pressures (PSI) at 0' vertical lift)

PSI:

30 40 50 60 70 80 90 100

FI-1800

35 33 31 29 26 24 21 18

FI-2500

40 38 35 34 32 29 27 25

FI-3300

60 53 51 48 44 40 36 32

FI-6000

60 60 60 59 57 55 53 51


Efficiency:



Best Efficiency Max Runout

Model No.

HP TDH Flow (GPM) TDH (ft) Flow (GPM) TDH (ft)

FI-1800

1.5 315 18 237 37 55

FI-2500

2 358 25 238 40 69

FI-3300

3 390 33 230 60 70

FI-6000

5 681 33 390 60 120


Operational Overview:

The balanced flow pump controller provides user-adjustable constant pressure using an energy-efficient variable speed pump motor. Using pressure measurements from the transducer, the controller adjusts the pump speed in order to maintain constant pressure, rather than the traditional on-off switched operation of traditional systems. The balanced flow controller provides continuous monitoring of motor current draw, voltage, temperature and loss of pressure. Systems ship factory-set at 50 PSI but can be easily adjusted to higher pressures in the field.

Flow Induction Chamber: The RainFlo Flow Induction Chamber is a specially designed water sealed pump housing which directs incoming water flow over the pump motor, providing necessary cooling, 15º pump inclination for longer bearing life, floating extractor intake, convenient 2" threaded output and compression sealed wiring port. Specially designed stainless steel motor centralizers with PVC pads keep the pump assembly stabilized and centered in the induction chamber for uniform flow and cooling. Vibration dampening rubber feet on the incline supports help protect fiberglass and plastic tanks from abrasion and reduce motor noise. A stainless steel lifting lug and tether assist in lowering the system into the tank. As with the motor assembly, the flow induction chamber is constructed with potable quality components.

Energy Efficient: By converting single phase input to 3 phase pump output, the controller can reduce energy consumption by 50%.

Raintight Controller: The controller is rated NEMA 3R (Raintight) so it may be located outdoors. It must be mounted vertically.

Dry-run Protection: This function protects the system from running dry. When the pressure transducer (included) detects inadequate water supply, the pump is automatically disabled. The controller will re-test for water supply until water is detected.

Broken Pipe Protection: The drive will turn off if the system pressure drops 20 PSI below the system set point pressure for a minimum of 30 seconds. ( This fault must be manually reset, it will not clear automatically, this may prevent property damage if a pipe breaks.)

Auxiliary Switch Input: For connection of an external switch or control device used to start and stop the pump. Devices such as an over-pressure switch, level (float) switch or any other non-powered switch

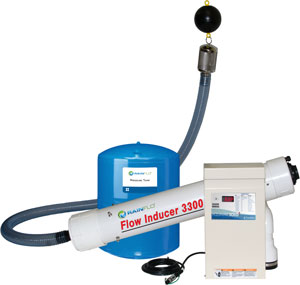

In order to provide the highest water quality and safety, the RainFlo and Flow Inducer product labeling shown in the image is not applied to production units.


Flow Inducer Performance Comparison:





Product Documents:
