RainFlo AGB Above Ground Rainwater Collection Bundle 1 1/2 HP 4 Inch

RainFlo AGB Above Ground Rainwater Collection Bundle 1 1/2 HP 4 Inch
RainFlo professional above ground rainwater collection bundle. You choose the tank and this above ground package includes everything else you need to construct your own rainwater collection system.
Our Price$1,159.95
List Price $1,334.00
SKURainFloAGB-4"/150-A
Weight 40
1935

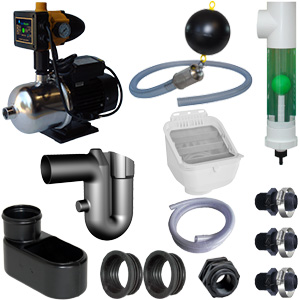

Package Includes:


RainFlo MHP150 A 1 1/2 HP Automatic Rainwater Pump - Heavy-duty, high performance, 115V/60Hz, 1 1/2 horsepower, 4-stage surface pump with automatic on/off and run-dry protection. Produces up to 36 GPM and up to 65 PSI.

Graf 1 1/4" Floating Extractor - The floating extractor consists of an air-filled ball which suspends the floating inlet filter 4" below the water's surface where the cleanest and most oxygenated water resides.

Graf Overflow Siphon - Removes floating debris from the rainwater tank when the tank begins to overflow by creating a siphoning action. Also aids in mosquito prevention and provides water a path to flow when the tank is full.

Graf Calming Inlet - Connected to the inlet pipe to prevent sediment disturbance, improve tank oxygen levels, and prevent water swirling. Also acts as a mosquito vectoring deterrent.

(2) 4" Multi-Tite Gaskets - Used to produce a watertight seal around the inlet pipe and the overflow siphon.

Leaf Eater Advanced Rain Head - Prevents debris from entering the rainwater collection system, improves water quality and reduces tank maintenance

4" First Flush Kit - Captures the most contaminated, "first flush" of water that runs off of the rooftop to improve the overall cistern water quality.

Pump Connection Kit - Includes (2) hose barb adapters with marine-grade stainless steel hose clamps and 1 1/4" Banjo Bulkhead fitting. Connects the suction hose (outside the tank) between the tank bulkhead fitting and the RainFlo MHP150A suction inlet.
Hose Barb Adapter
1 1/4" Hose Barb Adapter - Additional 1 1/4" MNPT to hose barb adapter to connect the floating extractor (inside the tank) to the 1 1/4" tank bulkhead fitting which also interfaces to the pump suction hose.

*Tank not included.

Drawings:

RainFlo AGB Above Ground Rainwater Collection Bundle 1 1/2 HP 4 Inch

Above-Ground-RainFlo-Tank-MHP75A.pdf
