RainFlo 85 GPM UV Disinfection System - 6.0 Controller

RainFlo 85 GPM UV Disinfection System - 6.0 Controller

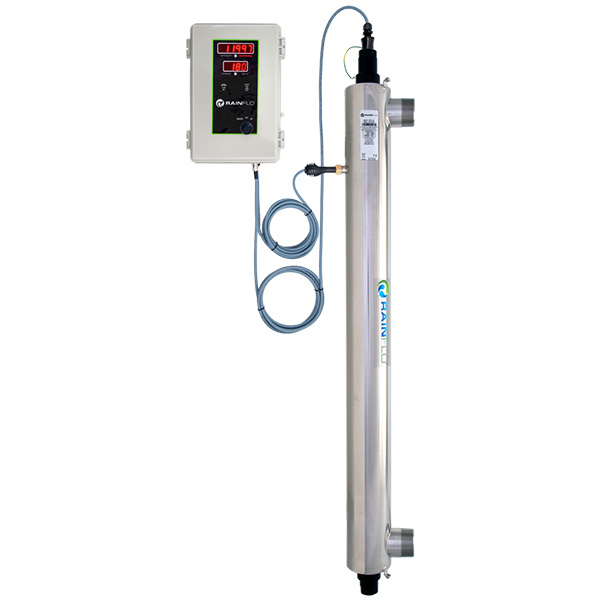

RainFlo 85 GPM UV Water Disinfection System with 2" MNPT Connections, 240 volt 6.0 Controller, included UV sensor, and LED display. Features high quality low pressure, amalgam (LP-AM) coated UV lamp technology and simplistic design for easy maintenance. Compare to Viqua UVMax K and K+.
Our Price$4,579.95
List Price $5,496.00
Weight 12
Free U.S. Shipping (excludes Hawaii/Alaska)

Product Description:


The quality of drinking water can change with time and become contaminated with harmful bacteria. The RainFlo system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application. The RainFlo system has been designed and tested to ensure quality drinking water is at everyone’s finger tips.

Features of the RainFlo UV Purification System include:

  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye.
  • Specially designed High Output lamps provide consistent and reliable ultraviolet output over the entire life of the lamp (12000 hours) to ensure continuous purification.
  • "Count down" timer display shows UV intensity, remaining lamp life, full diagnostics on start-up, and lamp change reminder.
  • The ultraviolet lamp can be changed without interrupting the water flow.
  • UV lamp technology coupled with efficient axial flow reactors
  • Durable stainless steel chamber prolongs life and eliminates UV light degradation.
  • Recommended for flow rates up to 85 GPM (322 LPM).
  • The power supply has a sealed case to prevent damage from accidental water intrusion and is fully CSA and CE compliant.
  • EPA Establishment #088776-CAN-001
The RainFlo disinfection systems provide treatment for flow rates up to 85 US GPM (322 LPM). The RainFlo system has an electronic controller which comes equipped with an LCD screen for visual management of the system's performance and ease of troubleshooting. The controller offers constant current, universal input and full electrical certification.


Product Flow Rates:


85 GPM (322 LPM) (19.3 m3/hr)


67 GPM (252 LPM) (15.1 m3/hr)

Reactor Dimensions 46.8" x 4" (119 cm x 10 cm)
Connection Size 2" MNPT
Power Consumption 220W


Product Documents:

Product Data Sheet
