Product Description:

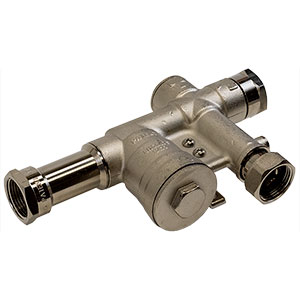

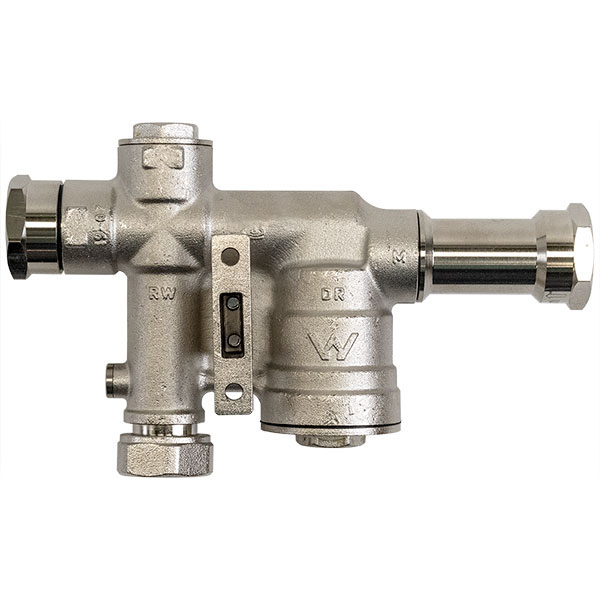

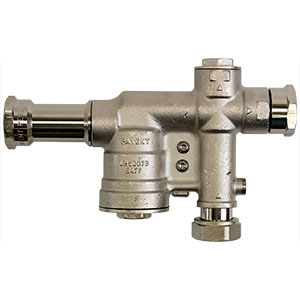

The Hydraulic Backup Valve provides an entirely mechanical, self-contained, automatic water backup solution. It does not require any electricity, is completely water proof, can be mounted in any position, and is not affected by sunlight. When rainwater is no longer available the valve will switch from rainwater to municipal water automatically by detecting the pressure drop.
Features:
- Easy to Install
- No electrical components
- No regular maintenance
- Full flow 1" outlets
- Suitable for any surface and submersible pump
- Can be mounted in any position and any distance from the pump
- No standby electrical consumption
- Solid brass - water proof, but not frost or freeze proof
- Hydraulically operated
- 5 Year manufacturers warranty
- Certified dual check valve for backflow prevention
- No float required on auto restarting pumps
Specifications:
- Rainwater inlet 1"
- Municipal inlet 1"
- Outlets 1"
- Weight 4.2 pounds
- Max pressure 152 PSI
- Max flow rate 52.8 GPM
