Product Description:

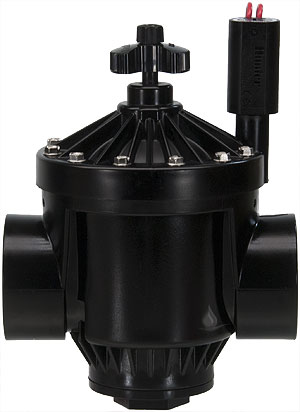

This Hunter line of PGV valves are the top of the line solenoid valve. They are hard working, heavy-duty valves built with supreme durability for great longevity in residential and light commercial applications. The valve can be connected to either a float switch or a rainwater system controller in order to create an automated back-up system for your rainwater harvesting system.
Product Features:
- Size: 2"
- 2 year warranty
- Bleed valves located externally and internally for easy "at the valve" activation
- Superior leak-free performance due to a double beaded diaphragm seal
- Temperature rating: 150°F
- Captive bonnet bolts provide hassle-free valve maintenance
- Hassle free service due to encapsulated 24 volt solenoid with captive plunger
- Inlet/Outlet: 2" female NPT
- Flow control - allows the ability to fine tune the amount of flow allowed into your tank
- Flow rate: 20 to 150 GPM
- Recommended pressure range: 20 to 150 PSI
Dimensions:
|
PGV-151
Inlet Diameter 1.5" |
PGV-201
Inlet Diameter: 2" |
| Height |
7.5" |
8" |
| Length |
5.75" |
6.75" |
| Width |
4.5" |
5.25" |
PGV Pressure Loss in PSI:
| GPM |
1.5" |
2" |
| 20 |
3 |
1 |
| 30 |
3 |
2 |
| 35 |
3 |
2 |
| 40 |
3 |
2 |
| 50 |
3.5 |
1 |
| 60 |
4 |
2 |
| 80 |
4.5 |
2 |
| 100 |
8 |
3 |
| 120 |
10.5 |
5 |
| 135 |
|
7 |
| 150 |
|
9 |
