Graf Platin XXL 6600 Gallon Cistern with Rainflo Water Treatment

Graf Platin XXL 6600 Gallon Cistern with Rainflo Water Treatment
Graf Platin XXL 6600 Gallon Cistern with Rainflo Water Treatment
Graf Platin XXL 6600 Gallon Cistern with Rainflo Water Treatment

Graf Platin 6,600 Gallon Underground Cistern with a complete water treatment system. The cistern features a 26" Manway Opening with a Childproof PE Lid and 6" inlet. An excellent choice for minimal excavation depth and high groundwater tables. Vehicle loading option available. The standard Water Treatment System is 25 GPM featuring superior performance, complete water treatment skid which will treat rainwater for on-demand reuse.

Our Price$44,999.95
List Price$51,750.00
SKURF-6600IG-UVS25-FI
Weight 3000


Platin XXL Tank Features:

  • Industry leading 15 Year manufacturer's warranty
  • Shallow variable bury depth from 6'9" to 9'3" (includes maxi dome height)
  • Suitable for H-20 vehicle load rating (when combined with cast iron lid option and manufacturer approved concrete slab)
  • Groundwater stable up to top of tank body without anchoring
  • Internal pre-filtration
  • Grass green telescopic riser and latching lid included
  • Up to 6" pre-drilled connections in tank dome
  • Convenient 26" manway opening
  • Easy-open access in lid for garden hose connection
  • Up to 8" connections at bottom of tank
  • 6,600 fully-usable gallons
  • Weight: 2,450 lbs
  • Dimensions: 38'3" long x 7'5" wide x 4'3" height (to top of tank)



Graf Platin XL outside of Graf's manufacturing plant

The Tank Guaranteed Not to Collapse When Empty*

* When installed in compliance with manufacturer's installation instructions


The newest generation of Platin low-profile underground rainwater tanks makes installation easier than ever, especially when compared to fiberglass tanks

The Platin® tank lineup features an ultra-high strength design, making it groundwater stable up to the tank’s shoulder and, when fitted with the appropriate lid, is safe for H-20 load rated vehicle traffic. The Platin tank is guaranteed not to collapse when empty when installed per the manufacturer’s specifications.


Ease of Installation:

Minimum installation depth greatly reduces installation time and cost, while modular components and integrated filter technology make the system easy to assemble.

Ultra-high strength materials and design enable a wide variety of installation options like high groundwater tables, underneath driveways and areas where rock and other obstructions prevent deeper burial.

Telescopic riser tilts up to 5°, making it easy to match existing grade.


Includes Graf Optimax Pro XL Package

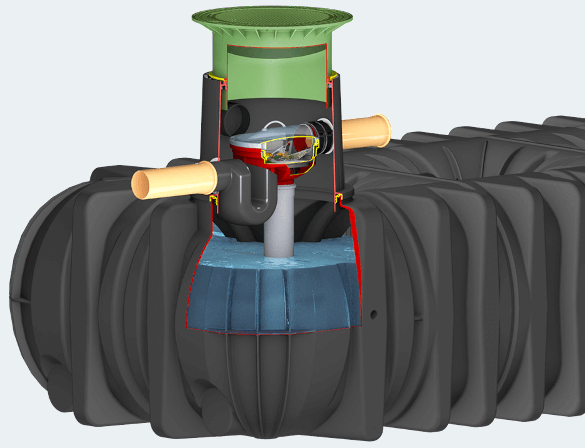

Graf Platin XXL Optimax Pro XL

Specially designed for rainwater harvesting, the Graf Optimax internal self-cleaning filter features a 6" inlet and 6" overflow.

  • Greatly simplified installation
  • Only one lid in the yard
  • Provides over 95% water yield
  • Self-cleaning
  • Very low maintenance
  • Optional Opticlean sprayhead available

The RainFlo UVS-25 Product Description:

The RainFlo UVS-25 Standard pumping system implements readily available, field tested components into a compact, affordable package designed to provide years of reliable service for residential and light commercial applications. Using commonly stocked components for its construction ensures that, when needed, service and replacement parts for the UVS-25 system are readily available in nearly any time or place. Building on the popular RainFlo Flow Inducer pump technology, the UVS-25 uses proven Goulds pump and VFD pump controls, RainFlo UV disinfection technology, and Graf system controls to deliver disinfected water at a constant pressure and variable flow rate up to 25 GPM at 40 PSI.

For additional information about how to get started and/or specifying a RainFlo Complete Water Treatment System suitable to your application, please contact us today!



Benefits of a RainFlo Complete Water Treatment System Include:

  • Pump system to deliver water at a variable flow rate at constant pressure up to 25 GPM @ 50 PSI
  • System can be configured with a submersible for skid mounted end suction pump
  • 25 GPM RainFlo RF6-25C UV disinfection system and dual 4.5" x 20" filter housings with filtration to 5 microns
  • 9 Gallon pressure tank
  • Water tank level monitor to measure water level in the storage tank and switch to an auxiliary water supply on low level
  • Automatic city water bypass valve
  • Single 230V/1PH power supply required
  • Pre-plumbed and assembled in SCH 80 PVC Pipe
  • Mounted on a powder coated aluminum skid
  • Includes differential pressure gauges and isolation valves
  • Dimensions: 62” height x 26.5” width x 36” depth

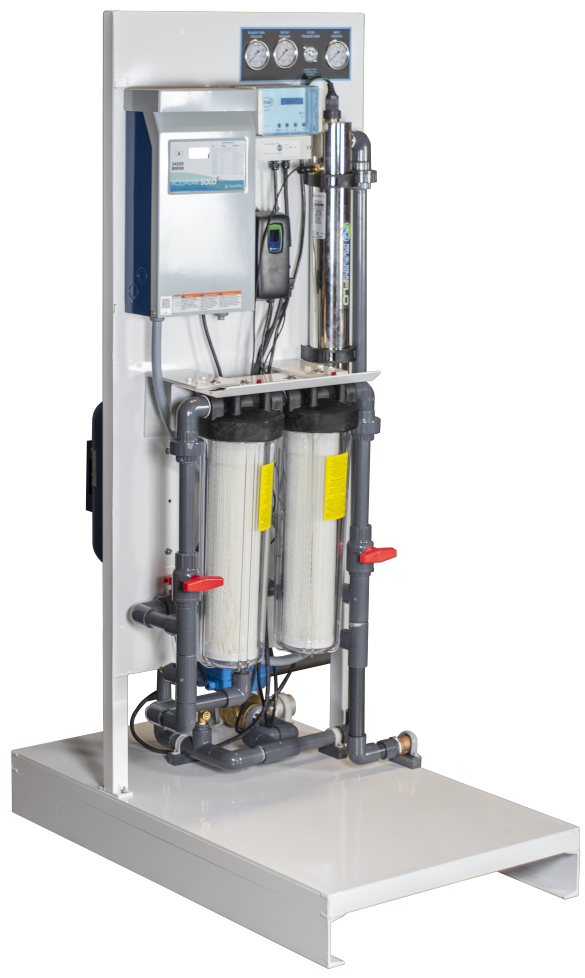

RainFlo Complete Rainwater Treatment System

Optional Accessories:


Vehicle Loading Option:

Includes heavy duty telescopic dome shaft and cast iron lid for vehicle loading up to a maximum axle loading of 2.2 tons.



Opticlean Sprayhead:

The sprayhead can be activated with a manual valve, a sprinkler valve or automatically with an external rainwater controller (not included).
