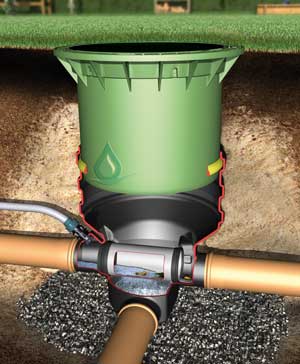

Graf Minimax® Filter - Vehicle Loading

Graf Minimax® Filter - Vehicle Loading

High efficiency, self-cleaning, below ground filtration system. This model ships with a cast iron lid for vehicle loading applications.

  • Over 95% yield
  • Self-cleaning filter
  • Max. 3,750 square feet
  • Minimum height offset
Our Price$929.95
List Price $1,069.00
SKU340062
Weight 96

Please contact us for current lead time.


Contact us


Product Description:

This model is the same as the standard Minimax® except that it ships with a cast iron lid for applications where vehicle loading capability is required.

The Minimax filter is designed for minimum height offset (0.4") between the inlet and outlet while maintaining maximum water yield. A superior choice for residential installations.

  • Variable installation depth from 19-38 inches
  • Flush installation at ground level
  • Only 0.4" height offset between inlet and outlet
  • 0.35mm (.01") mesh filter
  • Lockable childproof cover
  • Optional filter cleaning sprayhead

Minimax filter insert

Minimax Filter Insert

Product Documents:

Graf Optimax filter technical drawing View Technical Drawing of Graf Minimax® Filter

Minimax filter cleaning sprayhead Optional filter cleaning sprayhead

Graf Optimax Download Installation Manual

Internal Seal Detail




Complete Freight and Shipping Details:
When ordering this item or package, it is important to note the following about the freight delivery process; it is to be shipped via LTL (Less than Truckload) freight, with a call ahead, to schedule an appointment date and time that works best to accept the shipment. When the freight arrives at the nearest terminal to the delivery location, the freight carrier will call to schedule a delivery appointment for the next few business days, during normal business hours. Please be sure to include the best contact to setup and receive this delivery, as well as the phone number when ordering. Lift-gate service is available for an extra fee. Cannot ship outside of the contiguous United States without prior approval from RainHarvest Systems.
