Graf Basket Filter - Pedestrian
High efficiency, below ground filtration system.
100% water yield
Max 3,750 square feet with 4" connections
Max 5,500 square feet with 6" connections
Our Price $674.95
List Price
$810.00
SKU 340020
Weight 70
215
$90.00 Flat-rate Discounted Shipping
Quantity
Product Description:
The Basket Filter is designed for maximum water yield and lower cost. An ideal choice for smaller roof areas and areas where 100% water yield is required.
4" and 6" dual-size connections
Variable installation depth from 22-41 inches
Flush installation at ground level
Only 10.6" height offset between inlet and outlet
0.35mm (.01") mesh sieve
Lockable childproof cover
Suitable for percolation and pond systems
Easy to clean basket
Available with car-bearing cast iron lid

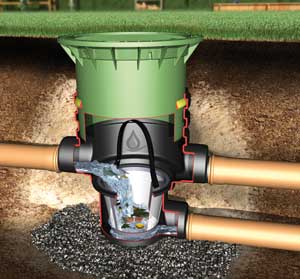

Internal Seal Detail
Telescopic riser (included), with natural looking lid, reduces cost, simplifies installation and produces professional looking results.
VIDEO
Product Documents:
Installing a Graf Optimax Filter, Complete Instructional Video:
VIDEO
