Product Description:

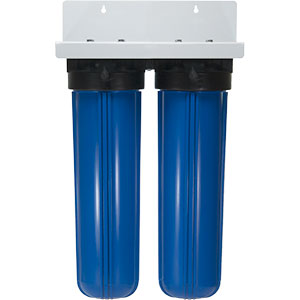

The double Big Blue is a complete, pre-assembled water purification assembly that filters water down to 5 microns. The system comes complete with (2) Big Blue filter housings, a double filter housing mounting bracket, a filter housing wrench, and the connecting nipples in between the filter housings.
Additionally, the unit arrives with filter cartridges pre-installed. From left to right, the filter cartridges installed are a
20 micron pleated sediment filter and a
5 micron pleated sediment filter.
The unit arrives completely assembled ready for installation. Installation is a breeze. Simply mount the unit to the wall and plumb in your water supply line. The standard system is set up to have a water flow from left to right. If your installation requires the opposite direction, simply choose the Right to Left (R-L) option.
|
|
|
Filter Housing Color |
Water Flow Direction |
MFR. Part No. |
|
Blue |
Left to Right (L-R) |
|
|
Blue |
Right to Left (R-L) |
|
|

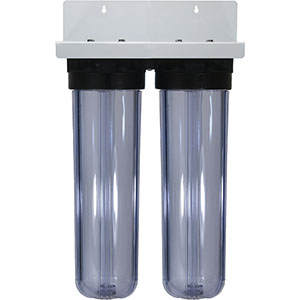

Clear |
Left to Right (L-R) |
|
|
Clear |
Right to Left (R-L) |
|
Product Features:
| Inlet/Outlet: |
1" female NPT |
| Housing Options: |
Each housing includes a pressure relief valve (red button) |
| Housing Color: |
Blue or Clear |
| Max Pressure: |
90 PSI |
| Max Flow Rate: |
35 GPM |
| Max Temperature: |
100°F |
| Dimensions (H X W): |
27-3/8" X 25" |
