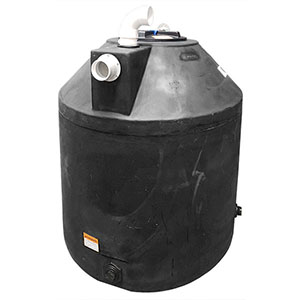

500 Gallon Preconfigured Above Ground Rainwater Collection System - Black

500 Gallon Preconfigured Above Ground Rainwater Collection System - Black
500 Gallon Preconfigured Above Ground Rainwater Collection System - Black
500 Gallon Preconfigured Above Ground Rainwater Collection System - Black
500 Gallon Preconfigured Above Ground Rainwater Collection System - Black

Currently in stock

Simplify your project design and installation with a RainFlo complete system. The RainFlo 500AGS system arrives preconfigured with all items installed on the tank. Simply connect the included components to your downspout and connect the downspout and pump to the tank. The system is designed with premium components for optimal performance in residential or commercial applications, and includes water storage, filtration, pumping, and hardware.

Our Price$2,999.95
List Price$3,450.00
SKU500AGS-BLK




RainFlo Rainwater Harvesting Systems
Product Description:

The RainFlo 500 Gallon Complete Above Ground Rainwater Collection System is preconfigured to simplify assembly and reduce your installation time.

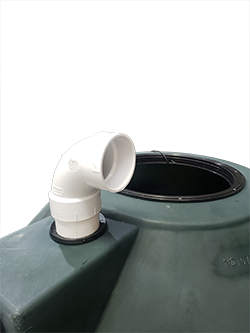

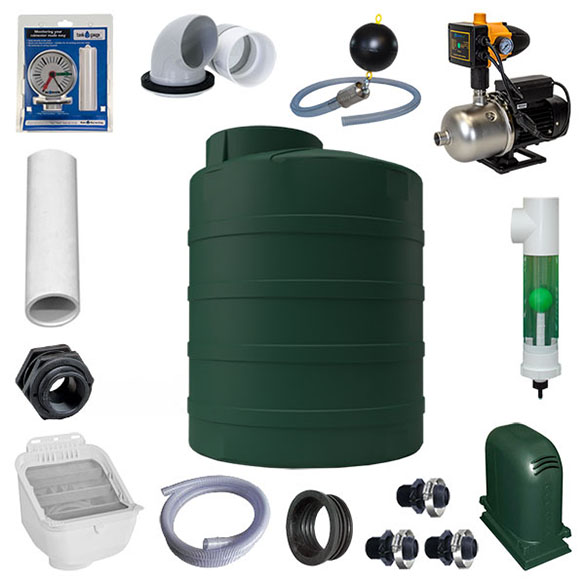

We drill all the necessary holes and also install the fittings, rain gauge, floating filter, and overflow in the optimal locations on the storage tank. The 500AGS includes a vertical water tank, 3/4 hp external pump, pump cover, floating filter, tank overflow kit, pre-filtration, first flush diverter, tank gauge, and hardware.

Tank Dimensions: 48" Diameter x 73" Height

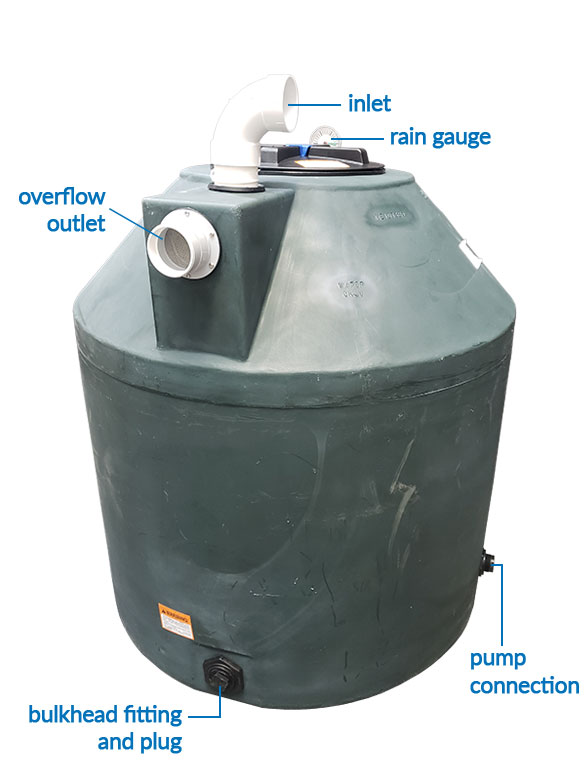

System comes preconfigured as shown below:


Installation Steps:

PLEASE NOTE: Additional 3” PVC parts to connect the leaf eater to the first flush and the first flush to the inlet are required, but not included.

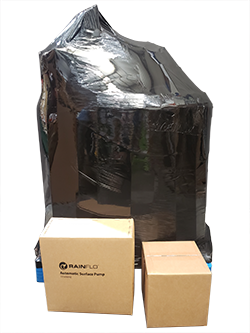

1. Tank assembly arrives wrapped and palletized. Additional system components shipped separately.

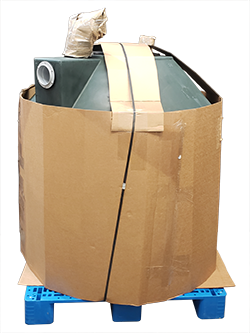

2. Once the pull wrap is removed, the tank is wrapped in cardboard and banded. Carefully cut the bands to remove them.

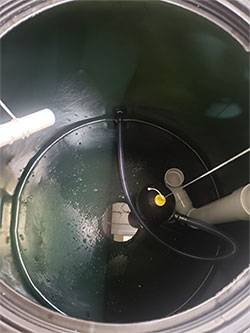

3. Remove the tank lid and untie the string to release the tank level gauge and the floating extractor.

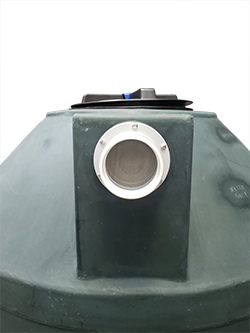

4. The gray screen goes into the overflow that accepts schedule 40 PVC. To use 3” thin wall, install the adapter included in the box.

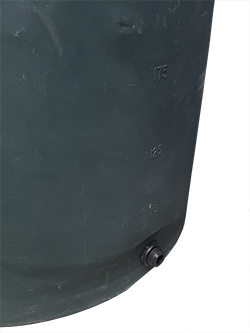

5. Connect the pump to the fitting on the bottom, right hand side of the tank.

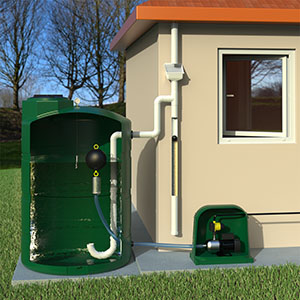

PLEASE NOTE: Images used above are for demonstration only, and do not reflect the actual size of the 500 tank. Once the tank is plumbed, the tank will hold less than the max gallon storage capacity, as the overflow outlet is located below the top of the tank.


System Features:

500 Gallon Norwesco Vertical Water Tank 500 Gallon Norwesco Vertical Water Tank - The Norwesco Water Storage tanks are raising the industry standard, with regard to impact resistance and durability. These unique, technologically advanced water storage tanks are roto-molded from virgin high density polyethylene resin. Tank Dimensions: 48" Diameter x 73" Height.
RainFlo MHP75A Automatic Pump RainFlo 3/4 Horsepower External Pump - The most silent (65 dB) automatic multi-stage (4 impellers) pump in the world, with automatic pump control to supply water for household booster, rainwater and irrigation applications. Delivers up to 26 GPM and 65 PSI (max).
Polyslab Pump Cover
The charcoal Polyslab Pump Cover - protects your pump. Heavy-duty, each cover includes a matching base to keep the pump off the ground and shelter from the elements. This will help prolong the lifespan of the pump as well as hide the pump from on-lookers.
1 Inch Stainless Steel Floating Filter 1 Inch Stainless Steel Floating Filter- The floating extractor consists of an air-filled ball which suspends the floating inlet filter 4" below the water's surface where the cleanest and most oxygenated water resides. An important component for any irrigation application.

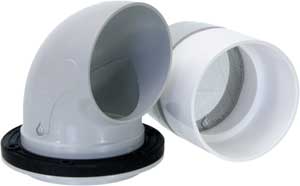

3 Inch Rain Harvesting Tank Overflow Outlet Kit 3 Inch Rain Harvesting Tank Overflow Outlet Kit- Rain Harvesting 3" Overflow Outlet Kit with Mozzie Stoppa screen blocks mosquitoes and adds almost 5" of water to the tank before overflowing.
3 Inch Rain Harvesting Leaf Eater Advanced 3 Inch Rain Harvesting Leaf Eater Advanced- The single screen incorporates Clean Shield™ technology which deflects leaves and debris away from the flow of water. This minimizes maintenance and enhances catchment efficiency.

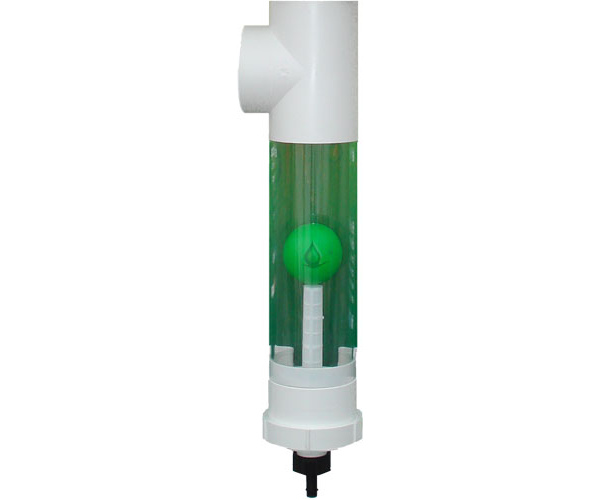

3 Inch Rain Harvesting First Flush Diverter 3 Inch Rain Harvesting First Flush Diverter- Instead of contaminants flowing to the water tank, pollutants are diverted with the initial flow of water into the chamber of the water diverter.
Above Ground Water Tank Indicator Rain Harvesting Tank Gauge- a water level indicator that is simple and easy to install. Suitable for all vented tanks up to 100" in height. Features an easy-to-read display dial and utilizes a weight float, suspended on a string line to provide instant, accurate readings.

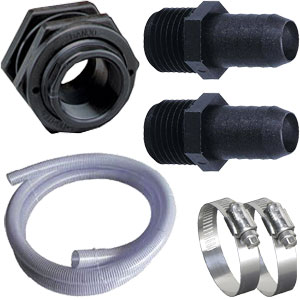

Rainwater pump connection kit Pump Connection Hardware Kit - Fittings, suction hose and adapters you need to connect the pump to the tank. Just connect the pump to your irrigation system or a garden hose and you're ready to go!


RainFlo 305 Gallon Complete Above Ground Rainwater Collection System

Complete Freight and Shipping Details:
When ordering this item or package, it is important to note the following about the freight delivery process; it is to be shipped via LTL (Less than Truckload) freight, with a call ahead, to schedule an appointment date and time that works best to accept the shipment. When the freight arrives at the nearest terminal to the delivery location, the freight carrier will call to schedule a delivery appointment for the next few business days, during normal business hours. Please be sure to include the best contact to setup and receive this delivery, as well as the phone number when ordering. Lift-gate service is available for an extra fee. Cannot ship outside of the contiguous United States without prior approval from RainHarvest Systems.



Product Documents:


Product Data Sheet

Getting Started
