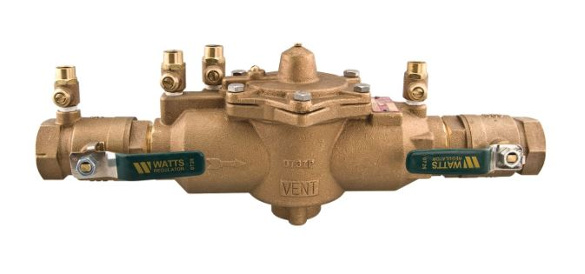

Watts Lead-Free Reduced Pressure Zone Assembly

Watts Lead-Free Reduced Pressure Zone Assembly
The Watts Lead-Free Reduced Pressure Zone Assembly is designed for installation on Potable Water Lines to protect from cross contamination between Municipal Water and Rainwater when using municipal water as a back-up water supply for your Rainwater Harvesting System.
Our Price$484.95
List Price$558.00
SKU391004

Currently in stock

Built to Your Needs:

This 1 inch lead free reduced pressure zone assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a lead free bronze body, 1 inch NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.

Grundfos SCALA 2 Water Booster Pump
Key Features:

  • Single access cover and modular check construction for the ease of maintenance
  • Large body passages provides a low pressure drop
  • Quarter turn full port resilient seated ball valve shutoffs
  • Internal relief valve for reduced installation clearances
  • NPT inlet and outlet connections
  • Test cocks are screwdriver slotted
  • Replaceable seats for an economical repair
  • Captured springs for safe maintenance
  • Lead free bronze body construction for durability


RPZ Assembly Specifications:

Body Finish: Cast Bronze
Body Pattern: Inline
Bypass: No
Disc Material: Silicone
GDS Status: Registered
Inlet/Outlet Connection Size: 1" NPT (Female)
Inlet Shutoff Valve Type: Quarter Turn Ball Valve
Minimum Temperature: 33 Fahrenheit
Maximum Working Pressure: 12 BAR/175 PSI
Pressure Operation: Continuous
Protection Type: Backpressure and Backsiphonage
Series: LF009
Warranty: One Year
