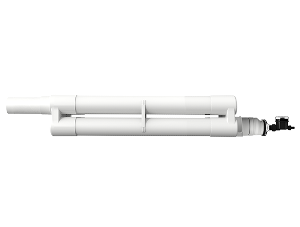

Product Description:
Innovative and cost saving. In addition to acting as a first flush diverter, this diverter also allows a "wet" system to be converted into a "dry" system. There are 2 main reasons why many systems are "wet". Firstly, due to the size of the buildings or the placement of the tank being away from the buildings, meaning that there are long runs of pipe underground leading to a riser at the tank. Secondly, to reduce the water from freezing, water is diverted below the freezing level of the ground in areas with cold climates. On a sloping site, this diverter ensures the diverted water AND the water that would normally remain in the pipes empties out. The result - a "dry" system that saves water and improves water quality.

- Requires minimum 5 degree (1:12) slope
- Features improved design of three four inch pipes
- Improved design features no more bulky 12" pipe
- See charts below for exact diversion calculations

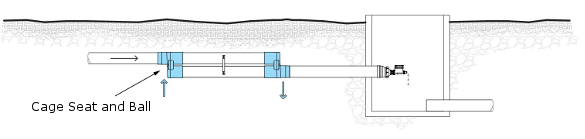

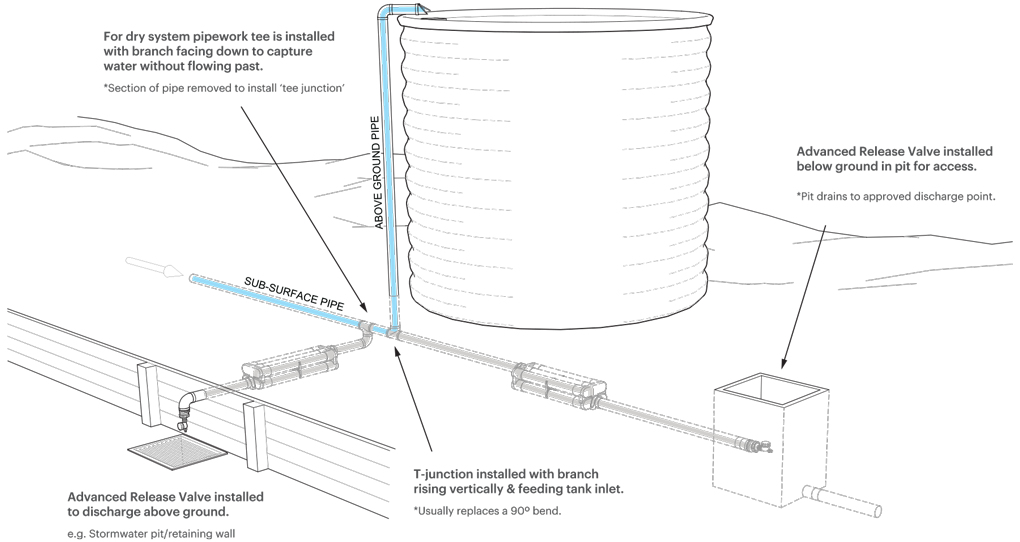

Example of Delta In-Ground Inlet and Outlet Position:

Diversion Recommendations for the Roof |
Minimal Pollution: divert 0.0125 gallons per square foot of roof area
Open field, no trees, no bird droppings, clean environment
Substantial Pollution: divert 0.05 gallons per square foot of roof area
Leaves and debris, bird droppings, various animal matter, e.g. dead insects, lizards, etc.
Example for a minimal polluted roof of 1,000 square feet:
1000 square feet X 0.0125 = 12.5 gallons to be diverted
Example for a heavily polluted roof of 1000 square feet:
1000 square feet X 0.05 = 50 gallons to be diverted |
PVC Pipe Specifications |
3" Downspout diverters: Use 3" Schedule 40 PVC
(not sewer and drain pipe)
Storage capacity: Each 3 foot section of 3" PVC holds approximately 1.1 gallons of water (0.3840341 gal/ft)
4" Downspout diverters: Use 4" Schedule 40 PVC
(not sewer and drain pipe)
Storage capacity: Each 3 foot length of 4" PVC holds approximately 2 gallons of water. (0.661312 gal/ft)
Post/Wall and In-ground First flush diverters: Use 4" Schedule 40 PVC
Storage capacity: See chart below, for exact calculations |
Delta Diversion Guide:
Six Four Inch Chambers Total Volume Calculator |
Chamber Volume in Gallons |
Total Length in Inches |
8 |
4 |
10 |
10 |
12 |
16 |
14 |
22 |
18 |
34 |
20 |
40 |
24 |
52 |
28 |
64 |
32 |
76 |
40 |
100 |
45 |
115 |
50 |
130 |
56 |
148 |
72 |
196 |
80 |
220 |
Please note that the two end caps contain a total of 6.52 gallons |
