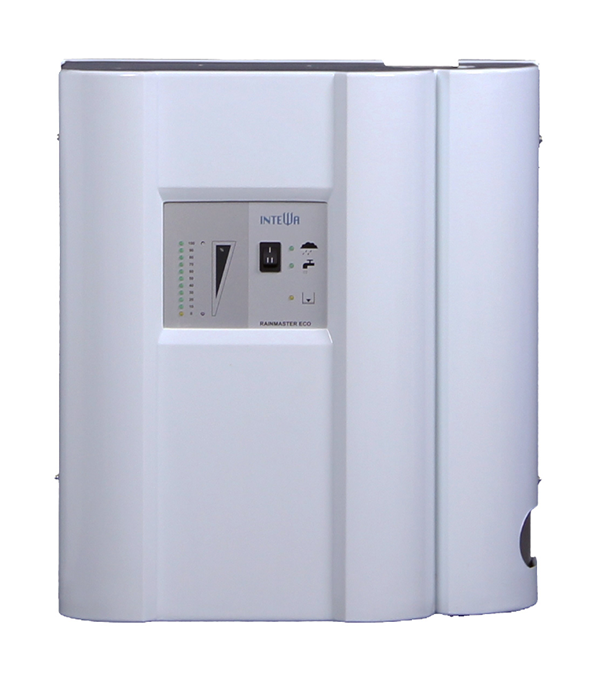

RAINMASTER ECO 10

The RAINMASTER Eco is an innovation among domestic waterworks. It is the fully automatic operating and monitoring station with pump, controller and integrated drinking water supply. Our new technology can be installed in the basement, garage or in the ground floor installation room of any family home. The water is drawn from a cistern and used via a suction hose to water the garden, flush the toilet and wash the washing machine. If there is not enough rainwater or gray water, the RAINMASTER Eco domestic waterworks automatically supplies consumers with drinking water via an integrated, certified make-up system.

Up to three toilet flushes and one urinal can be connected. Up to two washing machines can be connected.

Garden and cleaning: A garden faucet can be connected, to which small irrigation and cleaning equipment can be connected:

• Garden hose 20 m with spray nozzle
• small lawn sprinklers with a water requirement of up to 2 bar/400 l/h, lawn sprinkler Gardena Aquazoom 250/1 = size of the watered area approx. 80 m²
• Drip irrigation systems must be equipped with an expansion tank
• High-pressure cleaner with a water requirement of up to 500 l/h

Note : The RM-Eco uses a diaphragm pump. These pumps are positive displacement pumps. Compared to the centrifugal pumps typically used (approx. 65 dB (A), they are extremely quiet at 50-56 dB (A). However, it should be noted that positive displacement pumps vibrate. This vibration can in turn cause noise through the lines as a result of impulse noise transmission.
