The RainFlo Complete Water Treatment System Product Line:

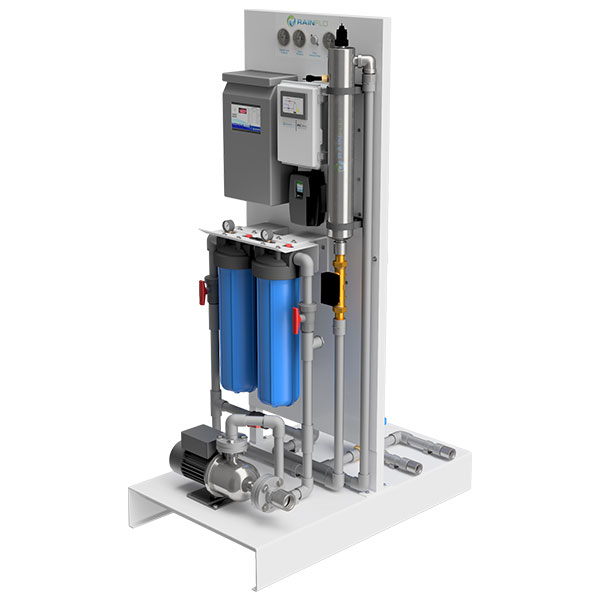

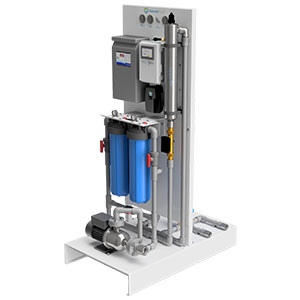

The RainFlo RF UVS-Mini-P Standard pumping system implements readily available, field tested components into a compact, affordable package designed to provide years of reliable service for residential and light commercial applications. Using commonly stocked components for its construction ensures that, when needed, service and replacement parts for the RF UVS-Mini-P system are readily available in nearly any time or place. The RF UVS-Mini-P uses a proven RainFlo pump and pump controls, RainFlo UV disinfection technology, and RainFlo system controller to deliver disinfected water at a constant pressure and variable flow rate up to 25 GPM.
For additional information about how to get started and/or specifying a RainFlo Complete Water Treatment System suitable to your application, please contact us today!
VIDEO
System Comparison:
System Model
RF UVS-Mini-Fl/P
RF UVS-Mid-Fi/P
Weight/Dimensions
260 lbs. (118 kg)/ 72"H X 26.5"W X 45"D
260 lbs. (118 kg)/ 72"H X 26.5"W X 45"D
Frame
Aluminum, powder coated - fork lift skid
Aluminum, powder coated - fork lift skid
Input power
240V @ 20A and 120V, single phase @ 4A
240V @ 20A and 120V, single phase @ 4A
Inlet/Outlet (Pump)
1.5” FNPT/1” FNPT
1.5” FNPT/1.5” FNPT
Inlet/Outlet (FI)
1.5” FNPT/1” FNPT
2” FNPT/1.5” FNPT
Bladder tank capacity
9.5 gal
13.2 gal
GPM
25
40
Pump
1.5 HP/3 PH flow inducer underground
OR
4 HP/3 PH above ground MHP pump, requires flooded suction
3 HP/3 PH flow inducer underground
OR
4 HP/3 PH above ground MHP pump, requires flooded suction
Constant pressure controller
Variable frequency drive (VFD)
Variable frequency drive (VFD)
Filters
37107 20 µm cartridge
37084 - 5 µm cartridge
Auto Clean Filter (ACF) - 10 µm
UV monitor
Digital power meter with sensor
Digital power meter with sensor
UV intensity
through controller
through HMI
UV lamp life
Up to 10,000 hours of continuous operation
Up to 10,000 hours of continuous operation
UV replacement parts
RF-L600C - lamp
RF-Q600 - sleeve
RF-L950C - lamp
RF-Q950 - sleeve
HMI size/Resolution
4"/480x272
7"/800x480
Level sensor - automatically detects and visibly displays water level
•
•
Flowmeter
•
•
Supplemental feed valve control
•
•
Pre filter rinse valve control
•
•
Drain valve control
•
•
Water source valve status
•
•
Domestic supply valve control
•
•
Pump pressure
•
Second tank level control
•
Flow total
•
Filter differential pressure monitoring
•
Flush valve control
•
Tank to tank transfer
•
