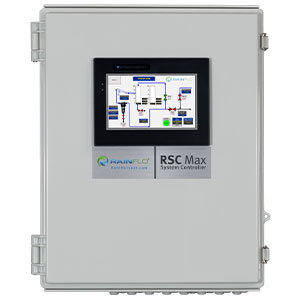

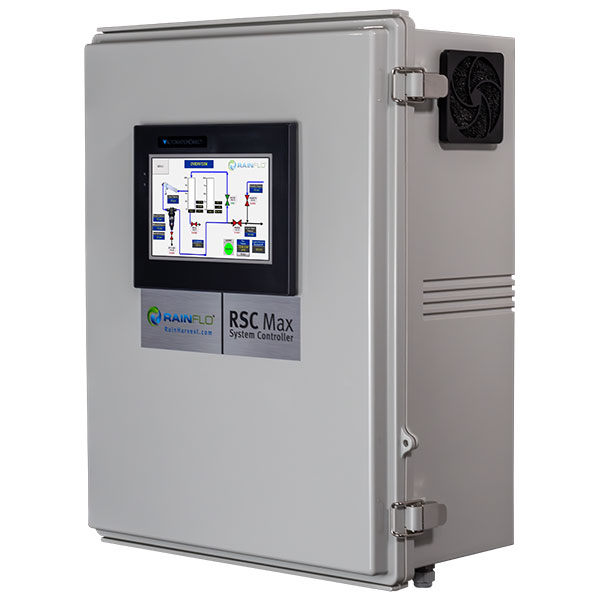

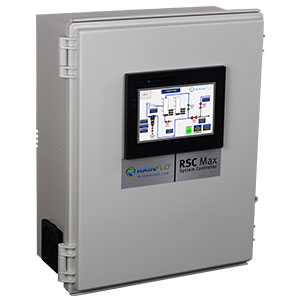

The RainFlo System Controllers are simple to use and provide all in one monitoring, automation, and control of rainwater harvesting and water reuse systems. The RainFlo System Controllers are robust PLC systems that receive information from input devices and automatically adjust system functions based on preset parameters. Each system can monitor, automate functions, signal alarms, and simplify the overall system functionality. For ease of use, each system controller includes a color touch screen human machine interface (HMI) for clear viewing and easy adjustments of functions and parameters.
- Smart Automation: Automatically adjusts water management systems for optimal operation and efficiency.
- User-Friendly Interface: Intuitive color touchscreen HMI provides real-time insights and easy control of system parameters.
- Enhanced Water Management: Intelligent flow and source switching ensure continuous water supply while prioritizing the use of harvested water.
- Customizable: Three versatile models allow users to tailor the system to their specific needs.
- Rugged Design: Durable NEMA 4X-rated enclosures protect controllers in demanding environments.

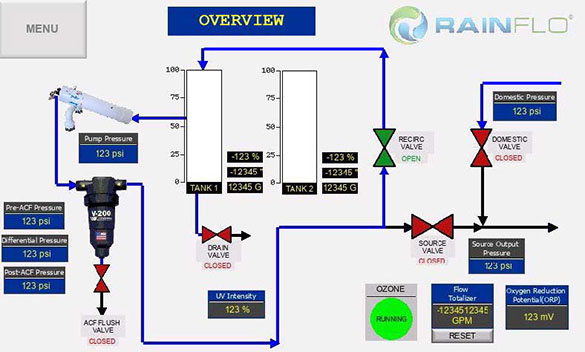

With the ability to monitor tank levels, UV intensity, filter pressure differentials, ORP, and much more, RainFlo System Controllers deliver unparalleled performance across residential and commercial applications.
Features and Functions
| |
RSC Mini |
RSC Mid |
RSC Max |
| HMI size/Resolution |
4”/480x272 |
7”/800x480 |
7”/ 800x480 |
| Inputs/Outputs |
1 analog input/
4 outputs |
6 analog inputs/
6 discrete outputs/
4 discrete inputs |
12 analog inputs/
16 discrete outputs/
8 discrete inputs |

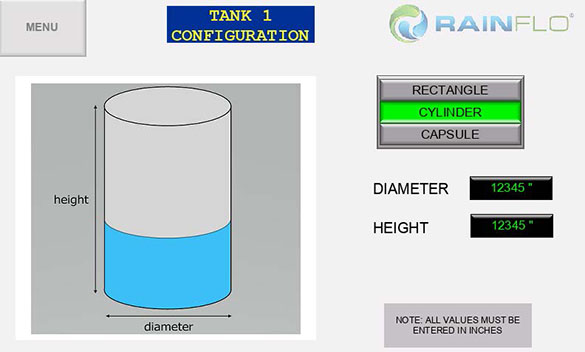

| Tank level monitoring |
• |
• |
• |
| Visual alarms |
• |
• |
• |
| Supplemental feed valve control |
• |
• |
• |
| Tank drain valve control |
• |
• |
• |
| Domestic supply valve control |
• |
• |
• |
| Pre filter rinse valve control |
• |
• |
• |
| Second tank level monitoring |
|
• |
• |
| UV intensity monitoring |
|
• |
• |
| Filter differential pressure monitoring |
|
• |
• |
| Flush valve control |
|
• |
• |
| Tank to tank transfer |
|
• |
• |
| ORP monitoring |
|
|
• |
| Recirculation function |
|
|
• |
| Multi-filter control |
|
|
• |
| Ozone power |
|
|
• |
Specifications:
| Dimensions: |
17”H x 13”W x 7”D |
| Input Voltage: |
120 VAC and 24VAC |
