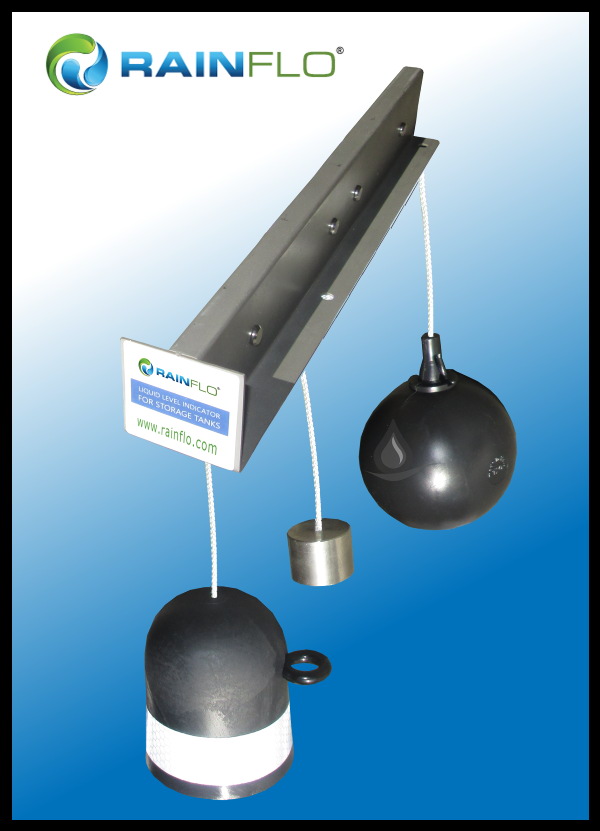

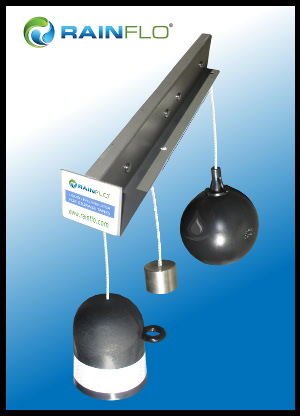

RainFlo LiquiLevel 32 Tank Level Indicator

RainFlo LiquiLevel 32 Tank Level Indicator
RainFlo LiquiLevel 32 Tank Level Indicator
RainFlo LiquiLevel 32 Tank Level Indicator
RainFlo LiquiLevel 32 Tank Level Indicator
RainFlo LiquiLevel 32 Tank Level Indicator
RainFlo LiquiLevel 32 Tank Level Indicator
Free Shipping

Superior stainless steel construction allows for installation in chemical tanks, as well as water tanks. Simple pulley and counterweight system with free hanging indicator on outside of the tank. Suitable for tanks up to 32 feet deep.

Our Price$329.95
List Price $396.00
SKU36322
Weight 5
1408


Clean, Simple Guide Wire System:

The LiquiLevel Guide Wire System consists of a single stainless-steel cable between the upper frame and the ground, leaving the indicator clearly visible. The Guide Wire System is available either bundled with the LiquiLevel or separately as an upgrade for LiquiLevel Basic models.


Superior Quality:

Constructed from stainless steel, these tank level indicating gauges will never rust and are built to last. Ingenious design allows tank liquid level on inside to be visibly seen from outside of the tank.


Highly Visible:

The black level indicator has a bright white, highly reflective band across it, making it visible from hundreds of feet away. At night, shine a flashlight or headlights on it and the reflective band will light up for the viewer.


True Reading:

Unlike homemade water level gauges that rise up the tank when the water level goes down inside the tank, the LiquiLevel shows the actual water level. What you see is what you have.


Simplicity:

No gimmicks, no batteries, just a simple float/weight/pulley system.


Easy to Install:

All necessary items (template, instructions and hardware) are provided to make it easy for the handyman to mount the LiquiLevel on the tank roof.


Reliability:

Built with quality materials and large, free-running pulleys, the LiquiLevel water level gauge provides reliable service year in, year out. Includes three year limited warranty.

RainFlo LiquiLevel


RainFlo LiquiLevel




How it Works:

  • The weighted float and indicator are connected to the counterweight by separate cords, each cord running over a pair of pulleys. When the float is half-immersed, everything is balanced.
  • Rising liquid level lifts the float up, the counterweight moves down, and the indicator keeps pace with the float.
  • Falling liquid levels causes the weighted float to pull the counterweight up, and again, the indicator keeps pace with the float.
  • At all times the indicator matches the liquid level exactly, even when installed at an angle.
  • This model suitable for tanks up to 32 feet in depth.


RainFlo Rainwater Harvesting Systems




Available Options:

RainFlo Part Number Product Picture Product Description
36339 LiquiLevel Plus with Guide Wire LiquiLevel 16 Plus, Includes 16 Foot (5m) Guide Wire
36315 LiquiLevel LiquiLevel 16
36360 Guide Wire for LiquiLevel 16 Foot (5m) Guide Wire for LiquiLevel 16
36346 LiquiLevel XL Plus with Guide Wire LiquiLevel 32 Plus, Includes 32 Foot (10m) Guide Wire
36322 LiquiLevel XL LiquiLevel 32
36353 Guide Wire for LiquiLevel 32 Foot (10m) Guide Wire for LiquiLevel 32
