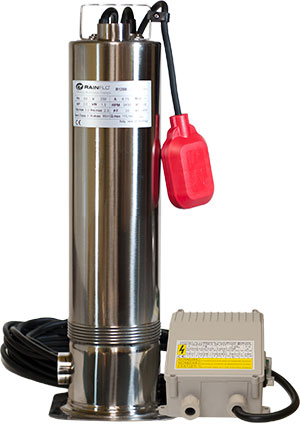

RainFlo .75 HP Universal Rainwater Pump

RainFlo .75 HP Universal Rainwater Pump
High performance universal rainwater pump with 1.25" threaded inlet for submersible and external installation.

Our Price$519.95
List Price$599.95
SKURF075
Weight 43
Free U.S. Shipping for orders over $149.00 (excludes Hawaii/Alaska)
Currently in stock
Special Bundle Offer!
Purchase the RainFlo .75 HP pump bundle
for only $769.95 and save over 10%!
RainFlo .75 HP Pump Bundle














Product Description:

We've configured the RainFlo RF075 series pumps with all of the best features and performance of any pumps in their class for the rainwater collection industry. The RF075 is a heavy-duty, high performance 115V/60Hz 0.75 horsepower 2-stage submersible pump with 1.25" threaded inlet to easily accept a floating extractor. The pump is internally cooled by the water flowing through the inlet so the pump can be installed either submersed in a tank or externally on the ground or other mounting platform.

Construction consists of a 304 stainless steel housing, dual Italian mechanical seals, American thermal protection, stainless steel diffuser and impellers, external starting capacitor for serviceability and long life, 45 foot power cord, pump start box with master on/off switch and circuit breaker which also serves as a wire connection box.

The pump is particularly quiet and durable from its solid construction. The water end is installed under the motor which keeps the motor cooled with the pumped water. The stainless steel impellers and diffusers offer high abrasion resistance while the Italian double mechanical seals ensure long life and enhance reliability.

The oil chamber is filled with non-toxic cooling oil. Ball bearings are self-lubricating and internal cast iron components are coated with polybutadiene varnish by electrophoresis to prevent corrosion which is sometimes associated with the typical lower pH of rainwater.

Installation may be oriented either vertical or horizontal so long as water is available at the intake to prevent a run-dry condition.

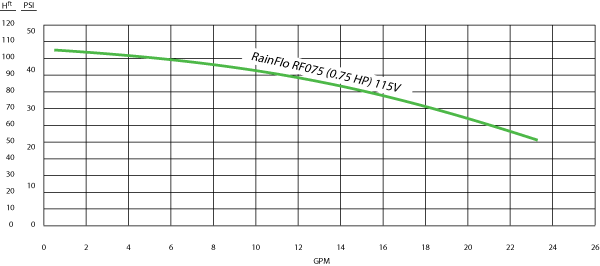

Pump Performance Curve:





Specifications:


Performance range:
Flow up to 29 GPM
Head up to 105 ft
Inlet/Outlet size:
1.25" FPT
System pressure:
Up to 46 PSI
GPM at 40 psi (0 Head)
8
GPM at 30 psi (0 Head)
18
Nominal voltage range: 110V - 120V, 60Hz, 9A max.
Power cord:
45', 16/3 with ground (H07RN-F 4X1.5mm²)
P1kW: 1.0
P2kW: 0.6
Weight: 36 lbs
Dimensions: 7" X 7" X 20" (including base)
Thermal protection:
Yes
Motor: 2-pole induction, continuous duty
RPM: 3450
Cooling: Water cooled/intake
Insulation class:
F
Pump Protection: IP68
Control Box Protection: IP44
Certifications: CE
Warranty: 1-year


Pump Start Box Wiring Diagram and Capacitor Location:

RainFlo Control Box Wiring
RainFlo Control Box Schematic
