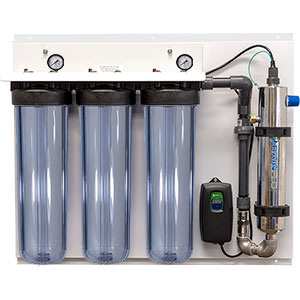

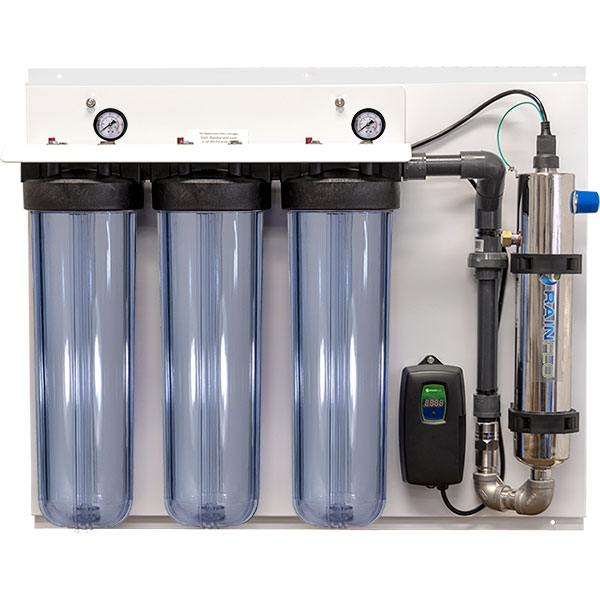

The RainFlo Complete UV Disinfection System Product Line Features:
The RainFlo complete UV disinfection systems use sediment filtration and UV disinfection to clean and disinfect rainwater for indoor non-potable and potable* plumbing and/or irrigation applications. Disinfected rainwater can be used for applications such as, flushing toilets and urinals, clothes/dish washing, industrial process water, irrigation/greenhouse, drinking water, or nearly any application where city or well water is used.
*The ability of the RF UV disinfection panels to create potable quality water is dependent on incoming water quality to the system. Please refer to the RF UV system product manual for relevant incoming water quality requirements. The ability to use rainwater for potable applications varies by jurisdiction. Please check with your local authority having jurisdiction for applicable codes and guidelines for using rainwater as a source of potable water. RainHarvest systems is not responsible for incoming water quality. The suitability of the water quality produced by the RF UV disinfection panels for its intended use must be verified by the system owner through regular testing.
VIDEO Benefits of a RainFlo UV Disinfection System Include:
30 mJ/CM2 @ 95% UVT treatment at 15 GPM
40 mJ/CM2 @ 95% UVT treatment at 11 GPM
Exceeds NSF/US EPA standards for potable water within specified conditions
15 gallon per minute flow rate
Disinfect rainwater in real time to bring it up to drinkable standards
Mounted on a heavy duty powder coated aluminum panel
Compact dimensions: 28” height x 36” width x 12” depth
Blue or Clear filter housing
Water flow from Left to Right (L-R), or Right to Left (R-L)
Additionally, the unit arrives with filter cartridges pre-installed. From input to output, the filter cartridges installed are a 20 micron pleated sediment filter , a 5 micron pleated sediment filter , and a 1 micron activated carbon block filter .
The unit arrives completely assembled ready for installation. Installation is a breeze. Simply mount the unit to the wall and plumb in your water supply line. The standard system is set up to have a water flow from left to right. If your installation requires the opposite direction, simply choose the Right to Left (R-L) option.
RainFlo complete UV disinfection systems include two pressure gauges pre-mounted on the top of the filter assembly. A pressure decrease of 7 PSID indicates the filter cartridge should be replaced.
This RainFlo complete UV disinfection system comes with two 1" NPT x 3/4" push-fit SS304 braided stainless steel hoses with ball valves in 12" length. Simplify filter changes by having shut-off valves on either side of your panel installation.
Product Documents:
Complete Freight and Shipping Details:
When ordering this item or package, it is important to note the following about the freight delivery process; it is to be shipped via LTL (Less than Truckload) freight, with a call ahead, to schedule an appointment date and time that works best to accept the shipment. When the freight arrives at the nearest terminal to the delivery location, the freight carrier will call to schedule a delivery appointment for the next few business days, during normal business hours. Please be sure to include the best contact to setup and receive this delivery, as well as the phone number when ordering. Lift-gate service is available for an extra fee. Cannot ship outside of the contiguous United States without prior approval from RainHarvest Systems.
