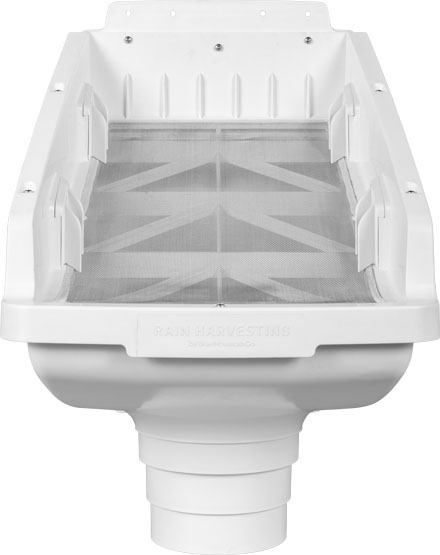

Leaf Eater Commercial Rain Head Downspout Filter, Polypropylene, 6 Inch Round
Commercial screened rain heads prevent leaves and debris from blocking downspouts and entering your rainwater tank. Rain heads are ideally installed on each downpipe as they protect the building and improve your tank's water quality. 6 inch (150 mm) outlet size.
Our Price $229.95
List Price
$264.00
SKU RHCL60
Weight 9.1
1662
Quantity
Features and Benefits:
Features a 6" (150 mm) round outlet at the bottom
High flow rate performance to match commercial requirements
Patented single screen technology for advanced debris shedding (Clean Shield™)
Minimal maintenance
Superior catchment efficiency
A single mosquito proof stainless steel mesh screen with 0.955mm aperture

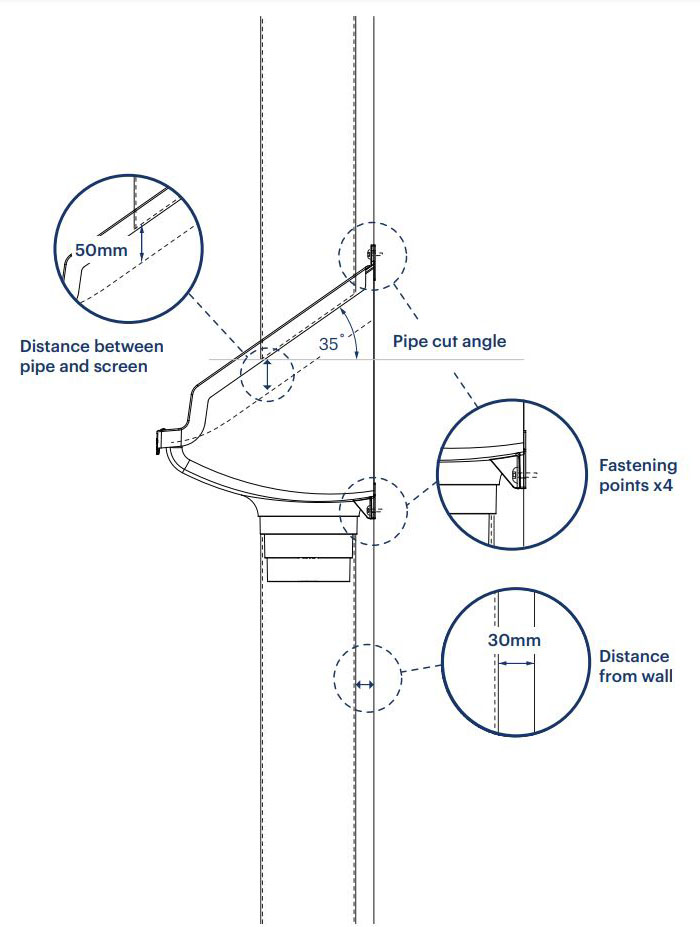

Select a location for the rain head. A rain head installed at a height of about 8 to 9 feet will prevent tampering while providing convenient access for maintenance
Cut and secure the bottom downspout section (outlet) to the wall. Offset the pipe about 1-1/4" from the wall where it will connect to the rain head outlet
Install the rain head into the downspout and mark the side flange fastening holes. Remove the rain head and prepare the necessary fastening points. Fasten the rain head to the wall ensuring that it is adequately supported by the wall structure
Position the downspout above the rain head with an offset of approx. 1-1/4" from the wall
Cut the outlet of the downspout at an angle of 35 degrees to match the angle of the screen
Position the angled pipe 2" to 3" above the stainless steel screen to allow leaves and debris to exit the downspout
