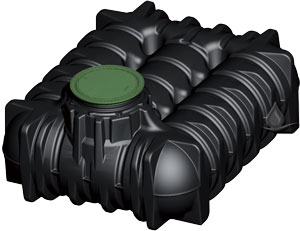

Graf Platin 1350 Gallon Cistern

Graf Platin 1350 Gallon Cistern

Graf Platin 1350 Gallon Underground Cistern with 26" Manway Opening and 14" high telescopic riser with childproof PE lid. An excellent choice for minimal excavation depth and high groundwater tables. Vehicle loading and internal filtration options are available.

Our Price$3,699.95
SKU390002PKG

Upgrade to a Complete System and SAVE!
In Ground System or IGS Collection System
Includes:

  • 1.25 HP Pump
  • Automatic Controller
  • Graf Optimax Filter
  • Floating Extractor
  • Overflow Siphon
  • Calming Inlet
  • 1.25" Bulkhead Fitting
  • In-Ground First Flush Kit
  • Misc. Fittings
Add to Cart
*Only $1199.95 with purchase of 500 gallon or larger in-ground tank.
Use discount code IGSTankPumpDeal at checkout.

Regularly $1499.95. Save 20%!

The Tank Guaranteed Not to Collapse When Empty*

* When installed in compliance with manufacturer's installation instructions


The new generation of Platin low-profile underground rainwater tanks makes installation easier than ever

The Platin® tank lineup consists of four low-profile tanks ranging from 400 gallons to 2,000 gallons. The ultra-high strength design of the Platin makes it groundwater stable up to the tank’s shoulder and, when fitted with the appropriate lid, is safe for vehicle traffic. The Platin tank is guaranteed not to collapse when empty when installed per the manufacturer’s specifications.

Platin Tank Features:

  • 15 Year manufacturer's warranty
  • Minimal installation depth
  • Suitable for vehicle loading (when combined with cast iron lid option)
  • Groundwater stable to the tank shoulder
  • Internal pre-filtration option
  • Grass green telescopic riser and latching lid included
  • Easy to transport and install
  • Convenient 26" manway opening
  • Easy-open access in lid for garden hose connection
  • 1350 fully-usable gallons

Ease of installation:

Minimum installation depth greatly reduces installation time and cost, while modular components and integrated filter technology make the system easy to assemble.

Ultra-high strength materials and design enable a wide variety of installation options like high groundwater tables, underneath driveways and areas where rock and other obstructions prevent deeper burial.

Telescopic riser tilts up to 5°, making it easy to match existing grade.


Optional Accessories:

Internal Minimax Pro Filter Option:

Specially designed for rainwater harvesting, the Graf Minimax Pro internal self-cleaning filter handles debris from roof areas up to 3,750 sq. ft.

  • Greatly simplified installation
  • Only one lid in the yard
  • Provides over 95% water yield
  • Self-cleaning
  • Very low maintenance
  • Optional Opticlean sprayhead available

Internal Basket Filter Option:

The internal basket filter provides 100% water yield for installations where every drop counts. Filter handles debris from roof areas up to 3,750 sq. ft.

  • Greatly simplified installation
  • 100% water yield
  • Convenient lift-out handle
  • Easy access for cleaning under tank lid

Vehicle Loading Option:

Includes heavy duty telescopic dome shaft and cast iron lid for vehicle loading up to a maximum axle loading of 2.2 tons.

Upgrade price: $689.95




Tank Dimensions:

Tank

400 Gallons

800 Gallons

1350 Gallons

2000 Gallons

Part No. 390000 390001 390002 390005
Weight (approx) 175 lb. 375 lb. 530 lb. 795 lb.
Length (l) 83" 96" 114" 142"
Width (w) 49" 83" 91" 89"
Height of tank shoulder (h) 28" 29" 37" 49"
Height of dome collar (hc) 12.5" 12.5" 12.5" 12.5"
Ø Manway opening (m) 26" 26" 26" 26"
Ø Tank dome (d) 31.5" 31.5" 31.5" 31.5"



Graf Platin Tank Specifications

Download Graf Platin Tank Spec Sheet

Download Graf Platin Brochure
