Graf Optimax XXL Industrial External Filter

Graf Optimax XXL Industrial External Filter
Graf Optimax XXL Industrial External Filter
Graf Optimax XXL Industrial External Filter
Field o not in database

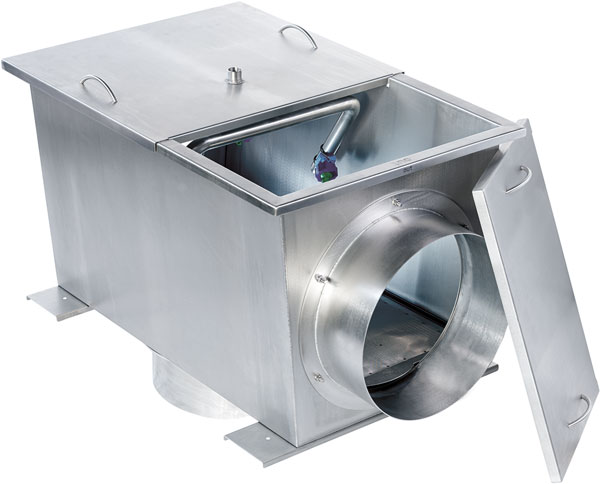

External self-cleaning cascade filter for mechanical rooms and underground vaults supplying underground cisterns. Suitable for flows up to 5,000 GPM.

Our Price$8,899.95
List Price$10,235.00
SKU340096
Weight 200
Currently in stock

Optimum Cleaning Performance with
Maximum Water Yield

  • Provides over 95% water yield
  • Effective flow rates up to 5,000 GPM with 16" connections and up to 1,500 GPM with 12" connections - see performance videos below
  • Approximate maximum catchment area of 300,000 ft² with (16") connections and 150,000 ft² with (12") connections in a 1" per hour rain event. Varies with rainfall intensity and other factors.
  • Can be installed above ground or into an underground vault (supplied by others)
  • Durable 314 stainless steel construction.
  • Specially developed for commercial/industrial rainwater harvesting
  • Patented filter technology
  • Optimum cleaning performance with maximum water yield
  • Low maintenance; self cleaning
  • Stainless steel 350 micron filter insert (0.01", 0.35mm mesh)
  • Industry-leading 1.75" height offset between inlet and outlet minimizes required tank excavation and fall for drain pipe
  • 314 stainless 12" and 16" connection kits available (required)
  • Extra high-capacity 20" inlet version available on special order

Performance Videos:

With 16 Inch Connections:

With 12 Inch Connections:

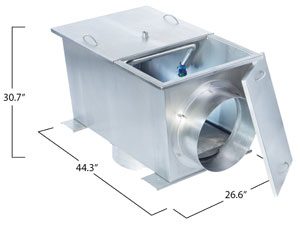

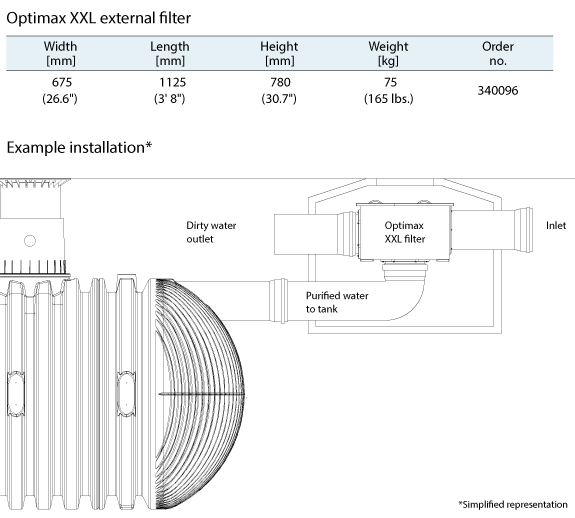

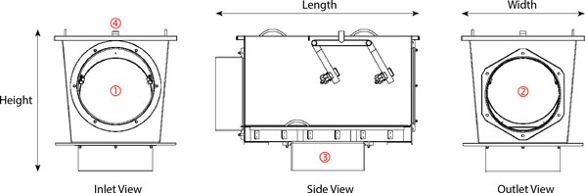

Options and Dimensions:


Product Documents:

Optimax XXL Filter Overview

Optimax XXL Filter Installation Instructions

Optimax XXL 300 Filter Drawing

Optimax XXL 400 Filter Drawing
Optimax XXL 300 Flow Text Data (12 in.)
Optimax XXL 400 Flow Text Data (16 in.)

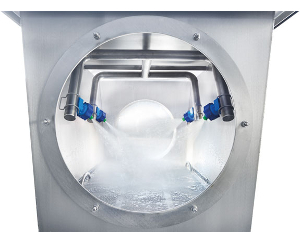

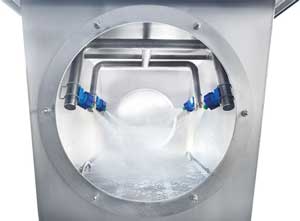

Four nozzles in the super-powerful sprayhead system keeps the filter element and chamber squeeky-clean. Debris is flushed out the dirty water outlet and away from the system.
