Product Description:
Thanks to the technological know-how developed during more than 40 years, DAB PUMPS is proud to introduce to the market the E.SYBOXmini, this is the most compact electronic pressurisation system in the world. Revolutionary, integrated E.SYBOXmini provides a new installation experience, and maximum comfort during use. E.SYBOXmini benefits of the most advanced DAB technologies to ensure a consistent pressure based on actual needs, and therefore an optimisation of energy consumption.

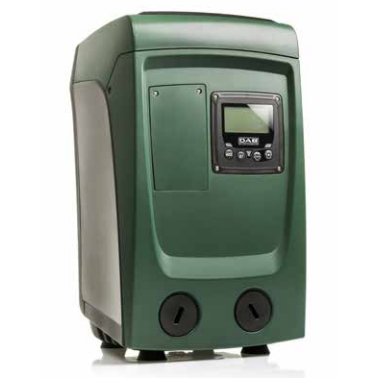

E.SYBOXmini is the DAB compact automatic booster system for the water supply of a single dwelling. E.SYBOX mini guarantees the comfort of constant pressure (Pressure Set Point adjustable from 15 up to 70 psi) inside the system.Suitable for use with drinking water, in domestic systems, and in gardening applications. E.SYBOXmini does not require any additional components for its installation.
Features:
- It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1/4 gallon built-in expansion vessel, and cartridge check valve.
- The double suction and delivery ports allow both vertical and horizontal installation.
- Thanks to its compact sizes, installation is also possible in difficult places without high air exchange.
- The E.SYWALL wall bracket allows wall installation, saving even more room.
- E.SYBOX MINI is a self-priming pump with a capability of 26 ft in less than 5 minutes.
- The water cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact.
- Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run, and the antifreeze protections.

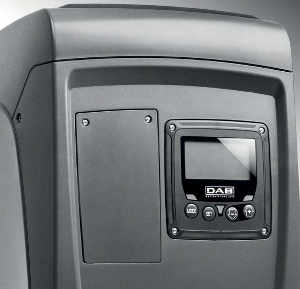

- All the parameters and the operating status is displayed and set on the high-resolution LCD display.
Advantages:
- Thanks to the technological know-how gained during the past 40 years, DAB PUMPS is proud to introduce the e.sybox mini, the most compact and advanced booster pump system in the world
- Revolutionary and complete, e.sybox mini provides a new installation experience, whisper quiet running and maximum performance
- e.sybox mini is the ideal solution to solve any water pressurisation issues in residential environments.
- e.sybox mini takes advantage of the most advanced DAB technologies, to ensure a consistent pressure based on actual demands, and therefore an optimisation of energy consumption
- Thanks to its versatility, e.sybox mini can be installed anywhere, even under the kitchen sink.
- Guarantees Consistent Waterpressure
- Ultra Low Noise
- No Vibrations
- Easy To Adjust
- Equipped With A Large Display
- Extremely Compact Sizes
- Quick To Install
- Installation Options: Horizontal, Vertical
- Reduced Energy Consumption
- Easy Maintenance
Technical Data:
| Operating Range: |
Capacity up to 22 GPM; head up to 164 feet |
| Liquid quality requirements: |
Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, un-crystallized and chemically neutral. |
| Operating Range: |
From 32°F to +95°F for domestic use or from 32°F to +102°C for other uses |
| Maximum suction depth: |
26 feet |
| Maximum ambient temperature: |
102° F |
| Maximum withstandable pressure: |
108 PSI |
| Maximum settable pressure: |
70 PSI |
| Motor protection rating: |
IPX4 |
| Insulation class: |
F |
| Installation: |
Horizontal or vertical fixed position |
| Power supply: |
115V 60Hz |
