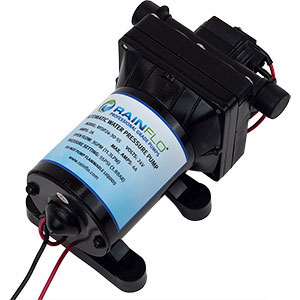

RainFlo 24V D/C Diaphragm Water Pump

RainFlo 24V D/C Diaphragm Water Pump
The RainFlo high pressure 24V-DC diaphragm pump is ideal for many different applications. Its solid construction and thick casings result in extraordinarily quiet and reliable operation. The pump is controlled automatically by a built-in pressure switch.
Our Price$99.95
List Price $139.95
SKU36674
Weight 10
Free U.S. Shipping for orders over $149.00 (excludes Hawaii/Alaska)
Currently in stock


RainFlo 24V-DC diaphragm pumps provide plenty of raw power and pressure, but can also adapt to situations where maximum flow is not needed. Compact but capable, it is a great fit for tight spaces. It also may be configured with different inlet types, to be sure that it fits any application you can find.



Product Features:



  • 4 chamber diaphragm pump
  • Continuous duty
  • Bypass: reduces cycling
  • Self priming
  • Quiet operation
  • Ignition protected
  • Run dry capable for normal workloads
  • Automatic: controlled by pressure switch
  • Industry standard mounting pattern



Product Applications:



  • Solar rainwater harvesting system
  • Water purification systems
  • Yacht/RV/caravan pressurized water system
  • Sprayer fixtures (vehicle-mounted sprayers, electric sprayers)
  • Food beverage filling and liquid transfer
  • Any other pressurization system

RainFlo 12 Volt Diaphragm Pump Features



RainFlo 12V Diaphragm Pump Materials

Technical Data:

Pump
Type
4 chamber positive displacement diaphragm pump, self priming, capable of being run dry
Control Type Pressure switch & bypass control
Max Recommended Temperature 140°F (60°C)
Priming Capabilities 6 ft. (1.8 m) suction lift
Re-Start Pressure Shut-off pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar)
Inlet/Outlet Ports 1/2 in.-14 MNPT
Weight 4.0 lbs. (1.9 kg)

Motor
Leads 16 AWG, 9.4 in. (24 cm) long with 2-pin connector/leads
Duty Cycle Intermittent
Max. Amp Draw 7.5A
Fuse 11.3A

Standard Pump Configurations
Model Volts Open Flow
Control
Type
Max
Draw
Shut-Off
Pressure
Valve Diaphragm Ports
36667 12V 3.0 GPM
11.3 LPM
Switch
and
Bypass
7.00A 55 PSI
3.8 bar
EPDM Santoprene 1/2 in.-14
MNPT
36674 24V 3.0 GPM
11.3 LPM
Switch
and
Bypass
3.37A 55 PSI
3.8 bar
EPDM Santoprene 1/2 in.-14
MNPT


Performance
 Pressure  Flow  Current
 PSI  Bar  GPM  LPM  Amps
 OPEN  0.00  2.85  10.80  3.9
 10  0.69  2.27  8.60  4.5
 20  1.38  1.96  7.40  5.1
 30  2.07  1.59  6.00  5.8
 40  2.72  1.32  5.00  6.3
 50  3.45  1.11  4.20  6.7
 55  3.80  0  0  7

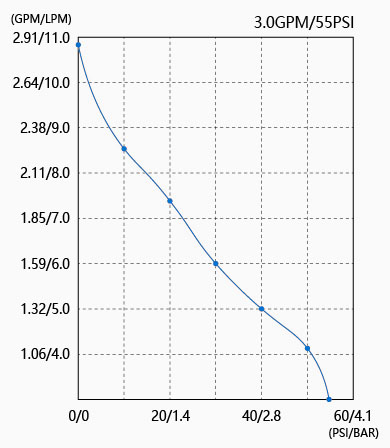

Pump Performance Curve:

RainFlow Diaphragm Pump Perfformance Chart

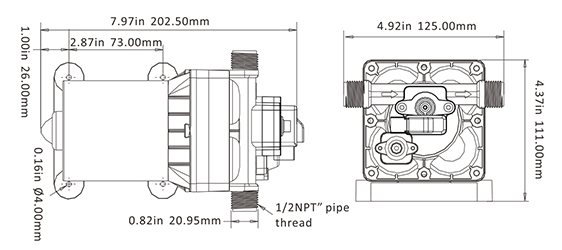

Dimensions:


 RainFlo Diaphragm Pump Dimensions




Product Documents:




Diaphragm Pump Dimensions and Performance Curves
RainFlo Diaphragm Pump User Manual
