Goulds V6P In-Line 1.9 Gallon Diaphragm Tank

Goulds V6P In-Line 1.9 Gallon Diaphragm Tank
Goulds V6P, In-Line Models, HydroPro Series, HydroPro Diaphragm Tanks, 1.9 Gallons, 38 Pre Charge PSI, 125 PSI Working Pressure, 3/4" NPTM Connection, 8-1/4" Dia., 10-3/16" Height.

Item is a single tank.
Our Price$119.95
List Price $179.99
SKUV6P
Weight 7
Free U.S. Shipping for orders over $149.00 (excludes Hawaii/Alaska)

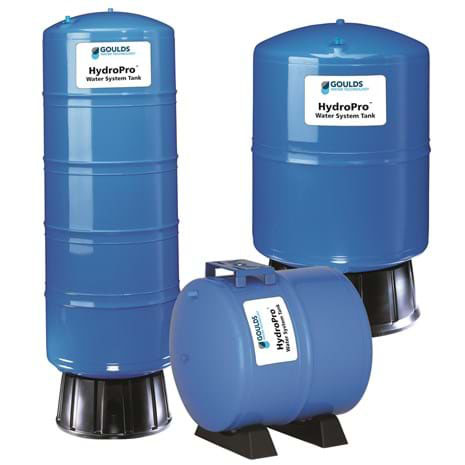

HydroPro Water System Tank

This 1.9 gallon take is pre-pressurized with air at the factory. As water enters the tank, air above the diaphragm is compressed and the volume is reduced by the same volume that enters. Water enters and pressure rises until pump cut-out pressure is reached, and the pump shuts off on a full tank. The pressure in the air chamber forces water into the system on demand, without the pump operating. And when the pressure drops to the cut-in point, the pump starts.


Dimensions: 8 1/4" diameter x 10 13/16" height
Manufacturer model # V6P
Total volume: 1.9 gallon
Maximum drawdown volume: 1.3 gallon
38 pre-charge psi
3/4" NPTM system connection
Factory tested and 100% air and water tight

Item is a single tank.
