Viqua D4 Compact Ultraviolet Water Disinfection System, 12 GPM

Viqua D4 Compact Ultraviolet Water Disinfection System, 12 GPM
Viqua D4 compact ultraviolet water disinfection system, 120V. Suitable for applications with water flow rates up to 12 GPM (45 LPM). High output lamp technology allows for a more compact footprint without compromising performance. Note: The D4 replaces the UV Max C4, C4-V and SV12Q-PA systems.

Our Price$575.00
List Price$720.00
SKUD4

Viqua Logo
D4 Overview:

The quality of drinking water can change with time and become contaminated with harmful bacteria. The Viqua D4 system is a reliable, economical and chemical-free way to safeguard drinking water in any residential application. The D4 system has been designed and tested to ensure quality drinking water is at everyone’s finger tips.



The Viqua D4 incorporates high-output UV lamp technology coupled with a new "S” shaped flow-through design for increased flexibility and ease of installation.

Features of the D4 Disinfection System:

  • Equipped to inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia, harmful bacteria like E.Coli and viruses not visible to the naked eye
  • The system is easy to maintain and servic
  • The high output UV lamp is specially engineered to maximize UV output
  • The special lamp plug ensures that the UV lamp cannot be powered on if it is not in the UV chamber
  • Lamps and sleeves are assembled together for ease of handling and so they can be replaced separately, in minutes and without tools
  • The included reference card outlines the most important system functions and maintenance procedures
  • Indicator lights show the status of system components and warning lights appear when system maintenance is required
  • Features a countdown to annual lamp replacement, a countdown restart button, as well as a warning alarm silencing button

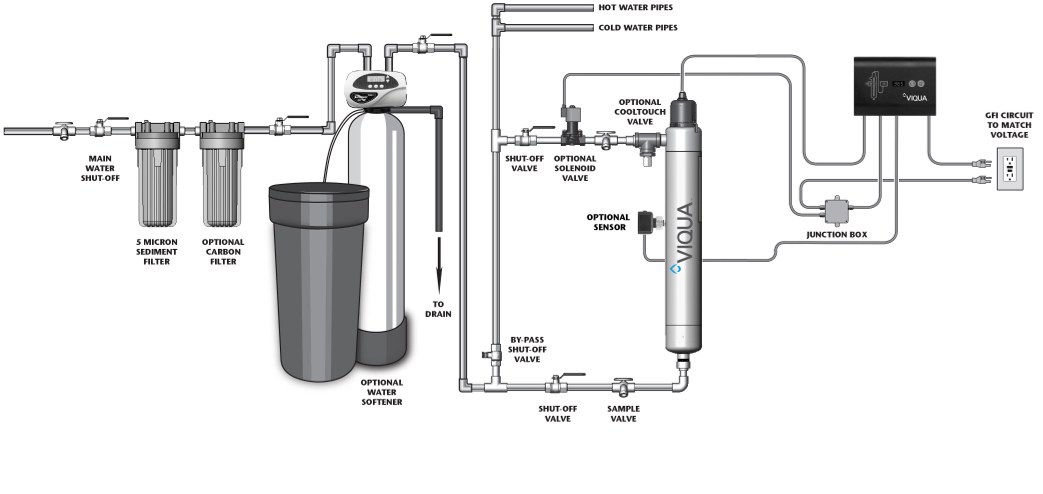

Product Diagram:

Viqua D4 Diagram



Product Flow Rates

Dosage
UV
Rate
16 mJ/cm² 95% UVT @ eoll 23 GPM
30 mJ/cm² 95% UVT @ eoll 12 GPM
40 mJ/cm² 95% UVT @ eoll 9 GPM


Product Specifications

Dimensions
Length 20.5 inches
Diameter 4 inches
Inlet/Outlet Port Size .75 inch MNPT
Shipping Weight 10 lbs
Reactor Chamber Material 304 S.S.

Electrical
Max. current 1.0 Amp
Power Consumption 50 W
Lamp Power 40 W
Voltage 100-240V / 50-60Hz

Operating Parameters
Maximum hardness 120 ppm (7 grains per gallon)
Maximum iron 0.3 ppm
Ambient Temperature 0-50 °C (32-122 °F)
Maximum Operating Pressure 125 PSI (8.62 bar)
Minimum UVT 75 %
Installation Orientation Horizontal or Vertical

Features
UV Intensity Monitor No
Visual "Power On" Yes
Audible Lamp Failure Yes
Audible alarm mute button Yes
Visual Lamp Life Remaining Yes
Lamp Replacement Indicator Yes
Safety Interlock Yes
Flow Restrictor Optional
CoolTouch fan Optional
Flow Pacing No
4-20 Interface No
Dry Contact No

Certifications
CSA Yes
CE Yes
