Viqua Integrated Home Rainwater Purification System, 12 GPM

Viqua Integrated Home Rainwater Purification System, 12 GPM
The Viqua 12 GPM Integrated Home Rainwater Purification System treats and disinfects rainwater for indoor use.
Our Price$1,029.00
List Price$1,389.00
SKUIHS12-D4
Weight 66
Free U.S. Shipping for orders over $99.00 (excludes Hawaii/Alaska)
Currently in stock
Viqua Logo
Product Description:

The Integrated Home System is a reliable, economical and chemical-free way to safeguard drinking water in any residential application. This rainwater purification package provides all the components that you would need to disinfect water per most local plumbing codes.


Product Features:

  • The system comes equipped with high flow filters allowing the water pressure to remain consistent
  • Adds integral pre-filtration to the D4 UV disinfection unit
  • Includes 10" and 20" filter housings with high-flow 5 micron sediment and taste/odor cartridges
  • Mounted on a heavy-duty, painted steel bracket for ease of installation
  • Indicator lights show the status of system components and warning lights will appear when system maintenance is required
  • Powder-coated, heavy gauge steel bracket on UV disinfection unit for durability and aesthetics


Product Flow Rates:

30mJ/cm2 12 GPM (45 lpm) (2.7 m3/hr)
40mJ/cm2 9 GPM (34 lpm) (2.0 m3/hr)


  Specifications:

Dimensions 25.2" x 12" x 28" (64 cm x 30 cm x 70 cm)
Shipping Weight lbs (kg) 35 lbs (15.9 kg)
Connection Size .75" FNPT/MNPT
Power Consumption 50W


  Product Diagram:

Viqua IHS12-D4

Package Components:

CMB-510-HF

CMB-510-HF

The first stage of the Integrated Home Rainwater Purification System is the 5 micron high-flow cartridge, found inside the housing on the left hand side. Measuring 4.5" x 10" long, this cartridge is manufactured from 100% virgin melt-blown polypropylene. The grooved design increases surface area and maximizes filtering efficiency.
C2-02 Carbon Block Cartridge

C2-02

The second stage of the Integrated Home Rainwater Purification System is the 10 micron high-flow carbon block cartridge, located in the center of the system. Measuring 4.5" x 20" long, this cartridge has been specifically designed for optimal taste and to remove odors.
Viqua D4 UV Disinfection System

D4

The UV disinfection unit, located on the right side, is the final stage of the Integrated Home Rainwater Purification System. Rated at 12 GPM, this highly featured whole-home UV disinfection unit comes complete with a graphical interface. Reduced overall footprint due to advanced lamp/chamber technology.

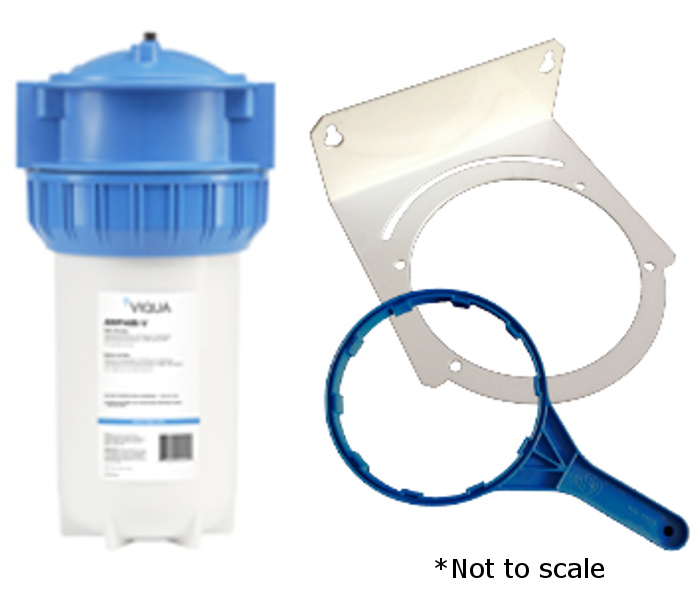

Viqua AWP40B-V

AWP40B-V

The 10" filter housing, the first stage of the Integrated Home Rainwater Purification System, is rated at 20 GPM. Featuring 1" ports and a pressure relief, this three-piece housing is specifically engineered to reduce the risk of o-ring leaks.


Product Documents:


Download Viqua IHS12-D4 Spec Sheet

Download Viqua IHS12-D4 Product Manual
