The RainFlo 1" water meter provides a simple, effective solution to monitor the amount of rainwater you have used from your rainwater harvesting system.

Our Price$104.95
List Price $174.95
SKUWM-RF-P100
Free U.S. Shipping for orders over $149.00 (excludes Hawaii/Alaska)


Product Description:

The RainFlo 1" cold water meter monitors the running total of water that has passed through it. The amount of water used will be displayed on an easy to read analog dial. The meter is plumbed in-line with your pump discharge line and can be installed either horizontally or vertically. As your pump forces water through the line the internal impellers of the water meter will begin to rotate and cause the needle on the display to slowly move forward. Whether for residential or commercial applications, the RainFlo WM-RF-P100 offers a simple, cost effective method to determine your rainwater usage.

Characteristics WM-RF-P100
Flow Rating (GPM) 50
Continuous Flow (GPM) 25
Normal Flow Range (GPM) 3 - 50
Low Flow (GPM) .75
Maximum Pressure (PSI) 170
Maximum Temperature (°F) 104
Sweep Hand Registers (gallons) 10
Register Capacity (millions of gallons) 10


Operation:

The RainFlo WM-RF-P100 is a multijet (inferential) impeller meter. The impeller and magnet are the only moving parts in the measuring chamber. The chamber is located in a strainer basket, which allows for high amounts of impurities to be passed through the meter without affecting operation. The impeller movement is transferred by a magnetic coupling to the hermetically sealed register.


Compliance:

The RainFlo WM-RF-P100 complies with AWWA C708 and ISO 4064 Class B standards.

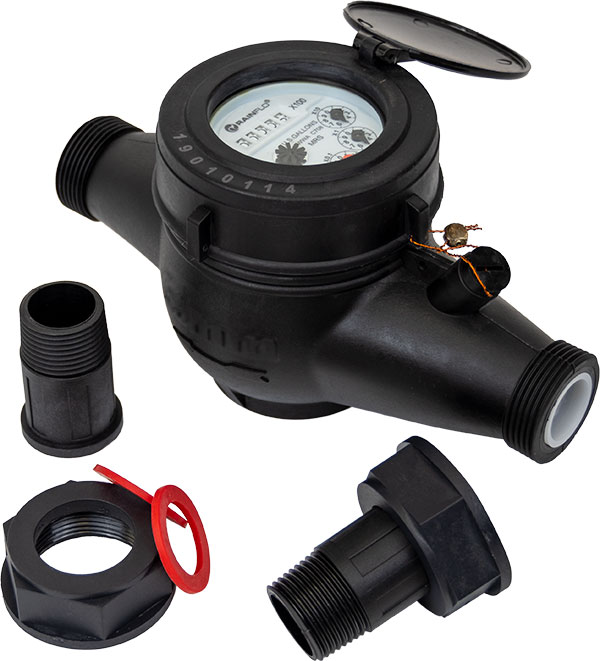

Construction:

The meter consists of a tough, durable plastic maincase with the size and flow direction on the outside of it, an integral strainer/measuring chamber, a removable dry hermetically sealed register assembly and a secured calibration port (factory tested and set).

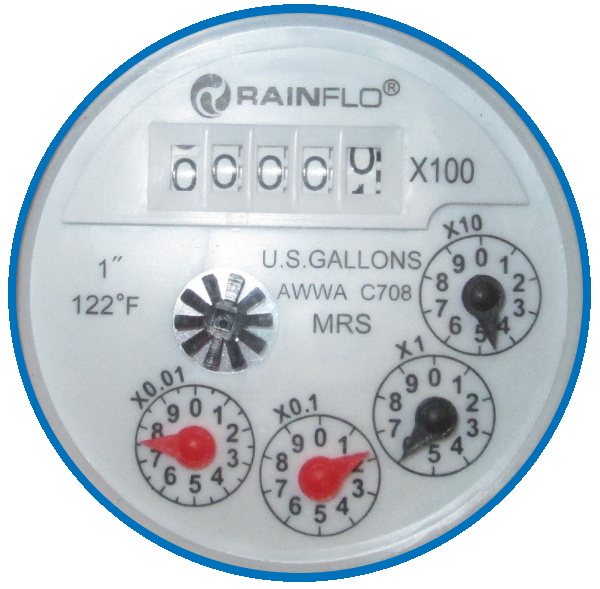

Direct Read Register:

The register is contained in a hermetically sealed nylon casing with .a 5mm tempered glass lens. The totalizer wheels are large and easy to read and the sweep hand is designed not to interfere with the odometer reading. The register's circumference shows individual gallons down to increments of tenths of gallons, for precision reading. The large red spinning trickle indicator is excellent for leak detection. Each register clearly shows its applicable meter size.

Corrugated Steel Twin Rainwater Tanks

Connections:

The RainFlo WM-RF-P100 is provided with high quality plastic coupling sets which provide you with 1" Male NPT threads.


Maintenance:

The register assembly is easily removable and replaceable, if needed. The integral strainer on the measuring assembly prevents foreign debris damage and can be removed and flushed clean if merited.
