Graf Quattro Twist Downspout Filter and Diverter
Graf Quattro Twist Downspout Filter and Diverter
Deluxe rainwater filter and diverter for round and rectangular downspouts with 1" side outlet. Patented swivel design accommodates tanks in any direction. Ships complete with 12" hose and bulkhead fitting for connection to tank or rain barrel.
Product Code: 50305A

Currently in stock


Inventory
Graf Quattro Twist - Beige - $79.95
Graf Quattro Twist - Brown - $79.95
Graf Quattro Twist - Grey - $79.95

Estimate Shipping Cost

  • Suitable for round and rectangular downspouts up to 3" X 4"
  • Customizable downspout inlets and outlets
  • Easy to switch from summer to winter operation
  • High water yield (approx. 90%)
  • Removable internal filter sieve
  • Patented 90° swivel from any center point
  • High-flow 1" side outlet
  • Full performance for roof surfaces of up to approx. 875 sq. ft.
  • Automatic tank overflow protection: no tank overflow is required if installed adjacent to the desired water level

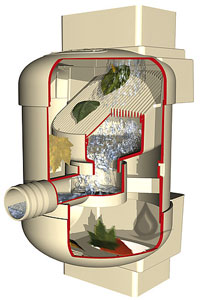

Quattro Twist downspout filter diverter functional diagram

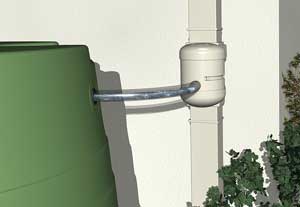

downspout connection to rainwater filter

Quattro Twist Dimensions
