Graf Basket Filter - Vehicle Loading

Graf Basket Filter - Vehicle Loading
Graf Basket Filter - Vehicle Loading
Graf Basket Filter - Vehicle Loading

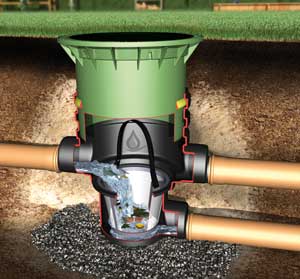

High efficiency, below ground filtration system. This model ships with a cast iron lid for vehicle loading applications.

  • 100% water yield
  • Max. 3,750 sq ft with 4" connections
  • Max. 5,500 sq ft with 6" connections
Our Price$899.95
List Price $1,080.00
SKU340021
Weight 96


Product Description:

This model is the same as the standard Basket Filter except that it ships with a cast iron lid for applications where vehicle loading capability is required.

The Basket Filter is designed for maximum water yield and lower cost. An ideal choice for smaller roof areas and areas where 100% water yield is required.

  • 4" and 6" dual-size connections
  • Variable installation depth from 22-41 inches
  • Flush installation at ground level
  • Only 10.6" height offset between inlet and outlet
  • 0.35mm (.01") mesh sieve
  • Lockable childproof cover
  • Suitable for percolation and pond systems
  • Easy to clean basket

Graf Universal 3 filter basket

Internal Seal Detail

How to Install Optimax Seal YouTube Video:


Product Documents:

Graf Universal 3 filter technical drawing View Technical Drawing of Graf Basket Filter

Graf Universal 3 filter Download Installation Manual


Installing a Graf Optimax Filter, Complete Instructional Video:



Complete Freight and Shipping Details:
When ordering this item or package, it is important to note the following about the freight delivery process; it is to be shipped via LTL (Less than Truckload) freight, with a call ahead, to schedule an appointment date and time that works best to accept the shipment. When the freight arrives at the nearest terminal to the delivery location, the freight carrier will call to schedule a delivery appointment for the next few business days, during normal business hours. Please be sure to include the best contact to setup and receive this delivery, as well as the phone number when ordering. Lift-gate service is available for an extra fee. Cannot ship outside of the contiguous United States without prior approval from RainHarvest Systems.
