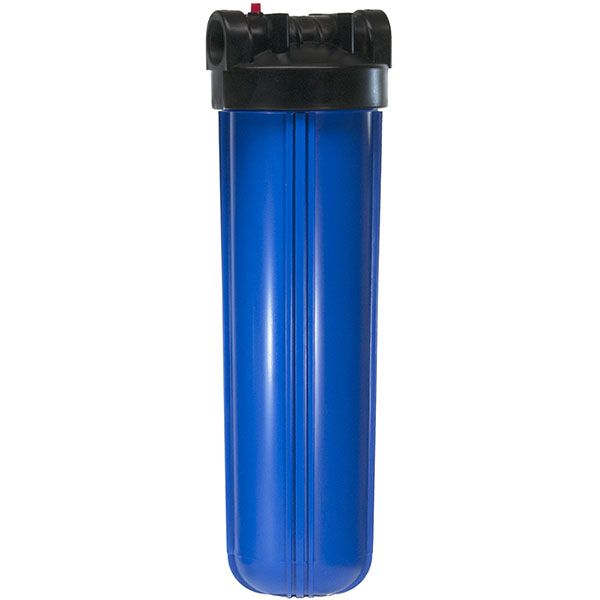

Big Blue 20" Filter Housing, 1" Ports & Pressure Relief

Big Blue 20
20" Filter Housing for Full Flow/Big Blue 20" X 4-1/2" Standard Filter Cartridges.
Our Price$68.95
List Price$74.95
SKUFW10000BL1PR
Weight 9
Discount
2 to 3 $63.95
4 to 5 $58.95
6 to 99 $53.95
Free U.S. Shipping for orders over $99.00 (excludes Hawaii/Alaska)
Currently in stock
For post treatment of rainwater collection systems, the 20" Full Flow filter housings are the preferred choice for most installations. The large housing and cartridge units offer up to 35 GPM of flow at 60 PSI and the maintenance costs for larger cartridges is much lower than replacing smaller cartridges more frequently. These housings are low cost, durable, easy to install and they accept standard Big Blue size filter cartridges.

The 1" female NPT inlet and outlet ports allow full flow through any of the Big Blue filter cartridges that will fit in this size of housing. Adaptation to other pipe sizes can be achieved using a threaded bushing or adapter.

Optional Mounting Brackets:

Big Blue and Full Flow mounting brackets

Full-Flow/Big Blue Filter Housing for 20" × 4½" OD Big Blue Cartridges


Model #: FW10000BL1PR

  • 20" Big Blue Size Housing
  • 1" FNPT inlet/outlet
  • Accepts all standard 20' x 4.5" cartridges
  • FDA grade, 100% polypropylene & acrylic styrene
  • Resistant to acids, alcohol, ammonia, oils, plating solutions & many aggressive chemicals
  • Rated for up to 125 PSI & temps of 125°F
  • Flow up to 35 GPM flow at 60 PSI
  • Pressure Relief button for easy cartridge replacement
  • Dimensions:
    Height 23-3/8"
    Width 7-1/4"

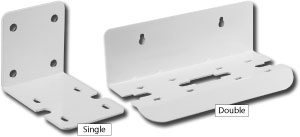

    Optional Mounting Brackets:

    Triple Big Blue mounting bracket
    White triple filter housing mounting bracket for 4.5" diameter Big Blue filter housing. Powder coated steel $48.95
    Double Filter Housing Mounting Bracket
    White double filter housing mounting bracket for 4.5" diameter Big Blue filter housing. Powder coated steel $25.95
    Single Filter Housing Mounting Bracket
    White single filter housing mounting bracket for 4.5" diameter Big Blue filter housing. Powder coated steel
    $11.95
