Aquatel D110 Wireless Tank Level Monitor

Aquatel D110 Wireless Tank Level Monitor
Aquatel D110 Wireless Tank Level Monitor
Aquatel D110 Wireless Tank Level Monitor

Aquatel's D110 Multi-Tank capable wireless fluid level monitor can be used to monitor up to 6 tanks or cisterns of nearly any shape or size.

Our Price$609.95
List Price $732.00
SKUD110
Weight 3
Free U.S. Shipping for orders over $149.00 (excludes Hawaii/Alaska)


Product Description:

The D110 system comes complete with everything needed to remotely monitor one tank or cistern up to 1,000 feet away. The maximum distance can be doubled to 2,000 feet using the AQ930 Omni Booster Antenna or up to 6 miles away using the AQ920 Yago Booster Antenna kit (both ends). See links at the bottom of this page for antenna details and options.

Should you wish to monitor more than one tank or cistern (up to 6 maximum) simply purchase additional T110 Tank Sender Units and pair to your Aquatel D110 Display Unit within minutes.

Key Features:

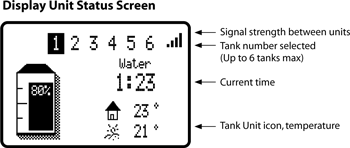

D110 Display Screen
  • Fully wireless - no cables
  • Blue backlit LCD display
  • High and Low level alarms
  • Set tank/cistern depth via Display Unit
  • Multi-Tank capable
  • Monitor up to 6 Tanks
  • Displays inside/outside temperature
  • Displays current time

The Display Unit setup menu is so easy to navigate that within minutes you will be able to set your tank depth, high and low level alarm points, clock settings and more, all remotely from the indoor Display Unit. The D110 will monitor your Tank or Cistern and warn you should your tank run low to ensure your pump never runs dry.

For your convenience, the unit has a digital clock and displays the current indoor and outdoor temperatures. This unit will even tell you when to replace the batteries. The D110 is suitable for tanks from 3.25 feet (1 meter) to 13.1 feet (4 meters) in depth. Designed to be a fully "DIY" product. It only takes minutes to setup and install, saving on installation costs.

Aquatel products are manufactured under ISO 9001 standards.



Product Video:

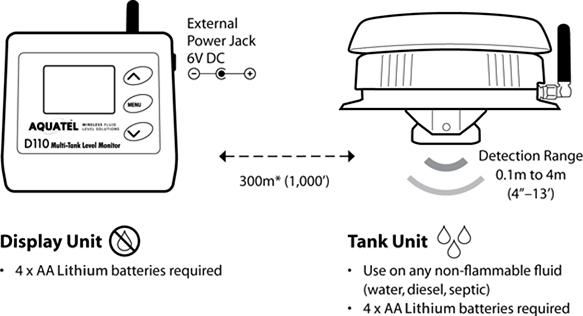

Functional Overview:



D110 Functional Overview



Please Note:
*Range shown is line of sight. Objects between units will reduce range. Long range booster antennas are available (up to 6 miles range).




System Components:



D110 Display Unit

M107 Tank Unit

Display Unit

Tank Unit


Manufacturer Recommended Batteries:

In environments where it is likely daytime ambient air temperatures will exceed 110 Fahrenheit (45 degrees Celsius) and where the Tank Sender Units are exposed to direct sunlight. Aquatel recommends a cover be placed over the tank sender unit to avoid batteries overheating and damaging the Tank Sender unit. They also recommend the use of Energizer Ultimate Lithium Batteries in all of the Tank Sender units.


Energizer Ultimate Lithium Batteries



Product Documents:



AquaTel D110 Brochure

Download Aquatel D110 Brochure

AquaTel D110 Manual

Download Aquatel D110 Manual
